LIGHTING SYSTEM PARTS LOCATION

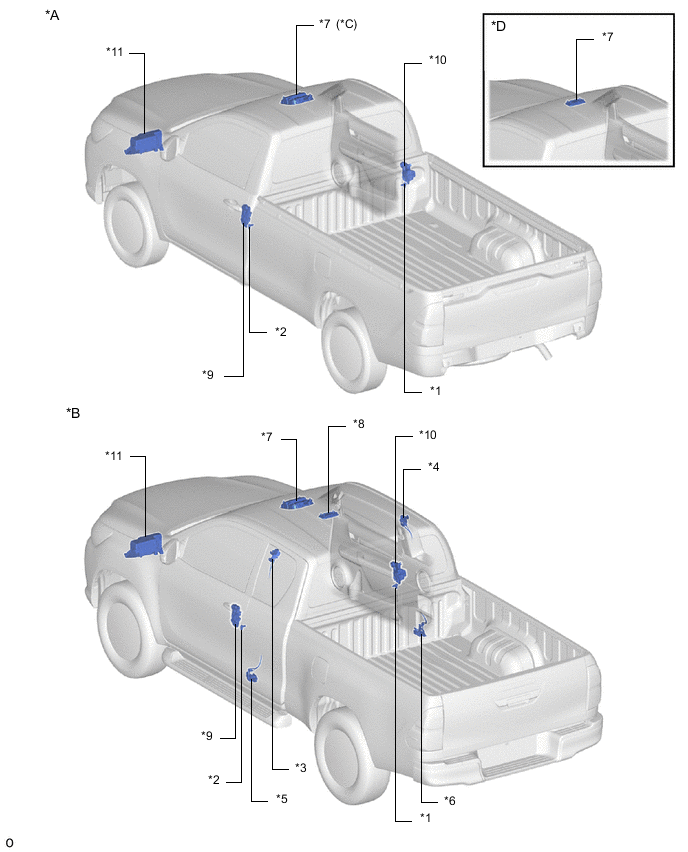

ILLUSTRATION
| *A | for Single Cab | *B | for Smart Cab |
| *C | w/ Overhead Console | *D | w/o Overhead Console |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *3 | UPPER ACCESS PANEL LOCK ASSEMBLY LH | *4 | UPPER ACCESS PANEL LOCK ASSEMBLY RH |
| *5 | LOWER ACCESS PANEL LOCK ASSEMBLY LH | *6 | LOWER ACCESS PANEL LOCK ASSEMBLY RH |
| *7 | MAP LIGHT ASSEMBLY | *8 | NO. 1 ROOM LIGHT ASSEMBLY |
| *9 | FRONT DOOR LOCK ASSEMBLY LH | *10 | FRONT DOOR LOCK ASSEMBLY RH |
| *11 | ENGINE ROOM RELAY BLOCK ASSEMBLY - DOME FUSE - ECU-B NO.4 FUSE (w/o Door Control Battery) - SMART FUSE (w/ Entry and Start System) |
- | - |

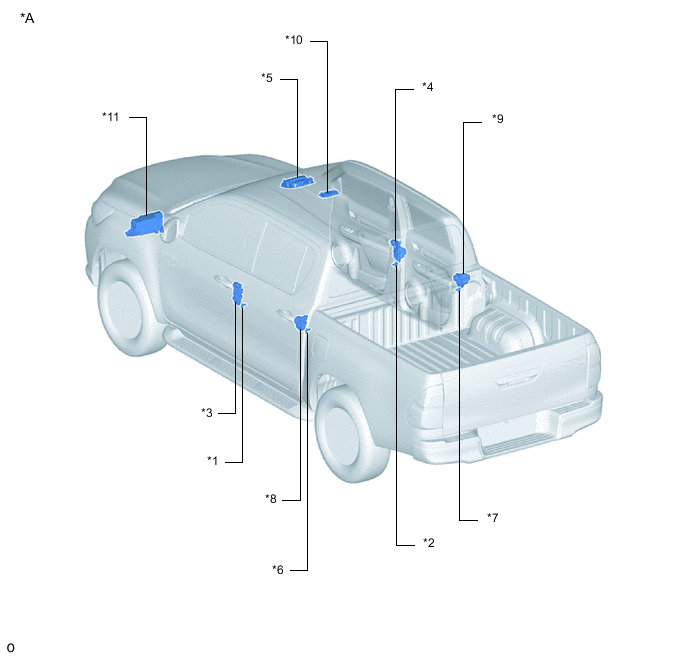

ILLUSTRATION
| *A | for Double Cab | - | - |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 | FRONT DOOR LOCK ASSEMBLY LH | *4 | FRONT DOOR LOCK ASSEMBLY RH |
| *5 | MAP LIGHT ASSEMBLY | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *8 | REAR DOOR LOCK ASSEMBLY LH |
| *9 | REAR DOOR LOCK ASSEMBLY RH | *10 | NO. 1 ROOM LIGHT ASSEMBLY |
| *11 | ENGINE ROOM RELAY BLOCK ASSEMBLY - DOME FUSE - ECU-B NO.4 FUSE (w/o Door Control Battery) - SMART FUSE (w/ Entry and Start System) |
- | - |

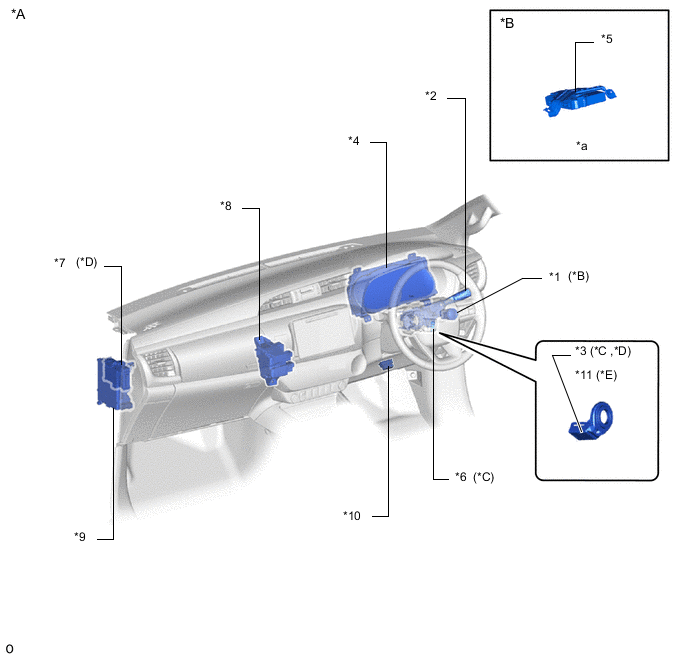

ILLUSTRATION
| *A | for LHD | *B | w/ Entry and Start System |
| *C | w/o Entry and Start System | *D | w/ Immobiliser System |
| *E | w/o Immobiliser System | - | - |
| *1 | ENGINE SWITCH | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | TRANSPONDER KEY COIL (IGNITION KEY CYLINDER LIGHT) | *4 | COMBINATION METER ASSEMBLY |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | UNLOCK WARNING SWITCH ASSEMBLY |
| *7 | BODY ECU | *8 | NO. 3 INSTRUMENT PANEL RELAY - TAIL RELAY - LIGHT CUT RELAY (DOME CUT) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO.4 FUSE - TAIL FUSE |
*10 | DLC3 |
| *11 | KEY CYLINDER LIGHT ASSEMBLY | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

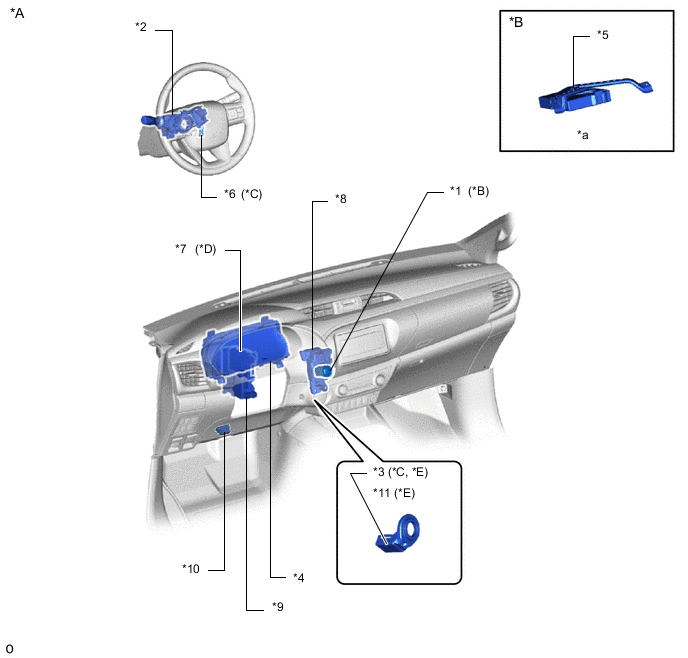

ILLUSTRATION
| *A | for RHD | *B | w/ Entry and Start System |
| *C | w/o Entry and Start System | *D | w/ Immobiliser System |
| *E | TRANSPONDER KEY COIL (IGNITION KEY CYLINDER LIGHT) | - | - |
| *1 | ENGINE SWITCH | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | TRANSPONDER KEY COIL (IGNITION KEY CYLINDER LIGHT) | *4 | COMBINATION METER ASSEMBLY |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | UNLOCK WARNING SWITCH ASSEMBLY |
| *7 | BODY ECU | *8 | NO. 3 INSTRUMENT PANEL RELAY - TAIL RELAY - LIGHT CUT RELAY (DOME CUT) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO.4 FUSE - TAIL FUSE |
*10 | DLC3 |
| *11 | KEY CYLINDER LIGHT ASSEMBLY | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
