SUB RADIATOR REMOVAL

PROCEDURE

  1. REMOVE FRONT BUMPER ASSEMBLY

    Click here

  2. REMOVE HEADLIGHT ASSEMBLY

    Click here

  3. REMOVE FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY

    Click here

  4. REMOVE RADIATOR UPPER AIR GUIDE PLATE

    Click here

  5. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  6. DRAIN COOLANT (for Inverter Coolant)

    Click here

  7. REMOVE NO. 1 RADIATOR SUPPORT

    Click here

  8. REMOVE NO. 2 FAN SHROUD

    Click here

  9. REMOVE RADIATOR ASSEMBLY (for Inverter Coolant)

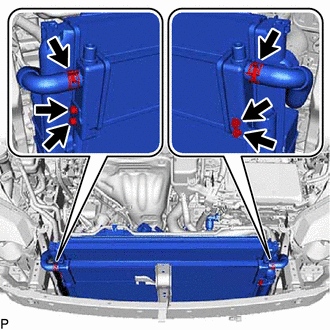

    1. C346016

      Slide the hose clamp, and disconnect the No. 5 inverter cooling hose and No. 2 inverter cooling hose assembly from the radiator assembly (for inverter coolant).

      Note:

      • After disconnecting the water hose, plug the water hose and the pipe of the radiator assembly (for inverter coolant) with vinyl tape, etc. to prevent foreign matter from entering the cooling path.

      • Do not apply excessive force to the water hose.

      Tip:

      Prepare a drain pan or cloth in case the coolant leaks.

    2. Remove the 4 bolts and radiator assembly (for inverter coolant) from the cooler condenser assembly.

    3. Remove the 2 radiator support cushions.
