SHIFT STROKE SENSOR INSPECTION

PROCEDURE

  1. INSPECT SHIFT STROKE SENSOR

    C277416C03

    *a

    Main

    *b

    Shift Stroke Sensor Arm

    *c

    55°

    *d

    0°

    *e

    -55°

    1. Measure the voltage between the terminals of the shift stroke sensor connector (main).

      1. Prepare 3 dry cell batteries (1.5 V) and 2 leads for connecting the batteries and the sensor.

      2. Connect the batteries in series.

      3. Connect the positive battery terminal to sensor terminal 3 (VCS1), and the negative battery terminal to sensor terminal 2 (E2S1).

      4. Measure the voltage according to the value(s) in the table below.

        Table 1. Standard Voltage (combined dry cell battery voltage of 4.5 V)

        Tester Connection

        Condition (Sensor Angle)

        Specified Condition

        1 (VSS1) - 2 (E2S1)

        55°

        3.6 to 4.5 V

        0°

        1.8 to 2.7 V

        -55°

        0.27 to 0.63 V
        Table 2. Reference Voltage (combined dry cell battery voltage of 5.0 +/- 0.3 V)

        Tester Connection

        Sensor Angle

        Specified Condition

        1 (VSS1) - 2 (E2S1)

        55°

        4.0 to 5.0 V

        0°

        2.0 to 3.0 V

        -55°

        0.3 to 0.7 V
        Note:

        • Do not apply more than 6 V.

        • Do not use a sensor which has been dropped.

        If the voltage is not as specified, replace the shift stroke sensor.

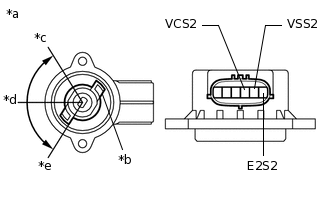

    2. C277416C04

      *a

      Sub

      *b

      Shift Stroke Sensor Arm

      *c

      55°

      *d

      0°

      *e

      -55°

      Measure the voltage between the terminals of the shift stroke sensor connector (sub).

      1. Connect the positive battery terminal to sensor terminal 6 (VCS2) , and the negative battery terminal to sensor terminal 5 (E2S2).

      2. Measure the voltage according to the value(s) in the table below.

        Table 3. Standard Voltage (combined dry cell battery voltage of 4.5 V)

        Tester Connection

        Condition (Sensor Angle)

        Specified Condition

        4 (VSS2) - 5 (E2S2)

        55°

        3.6 to 4.5 V

        0°

        1.8 to 2.7 V

        -55°

        0.27 to 0.63 V
        Table 4. Reference Voltage (combined dry cell battery voltage of 5.0 +/- 0.3 V)

        Tester Connection

        Sensor Angle

        Specified Condition

        4 (VSS2) - 5 (E2S2)

        55°

        4.0 to 5.0 V

        0°

        2.0 to 3.0 V

        -55°

        0.3 to 0.7 V
        Note:

        • Do not apply more than 6 V.

        • Do not use a sensor which has been dropped.

        If the voltage is not as specified, replace the shift stroke sensor.
