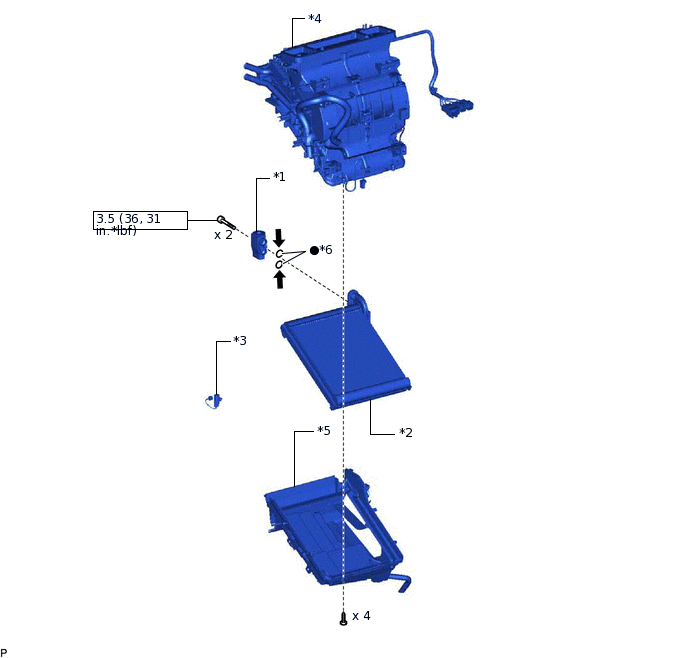

FRONT EVAPORATOR TEMPERATURE SENSOR COMPONENTS

*1	COOLER EXPANSION VALVE	*2	NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY
*3	NO. 1 COOLER THERMISTOR	*4	UPPER HEATER CASE
*5	LOWER HEATER CASE	*6	O-RING
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-

*1

COOLER EXPANSION VALVE

*2

NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

*3

NO. 1 COOLER THERMISTOR

*4

UPPER HEATER CASE

*5

LOWER HEATER CASE

*6

O-RING

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Compressor oil ND-OIL 11 or equivalent

-
