CAMSHAFT OIL CONTROL VALVE REMOVAL

PROCEDURE

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Click here

  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

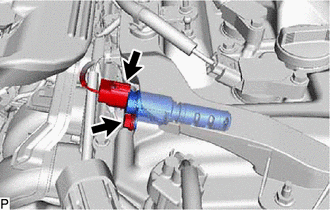

    1. A314850

      Disconnect the camshaft timing oil control valve assembly connector.

    2. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.

      Note:

      Replace with a new part if it is dropped or if it receives a strong impact.

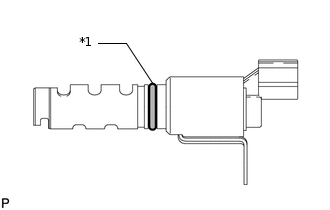

    3. A195062C40

      *1

      O-Ring

      Remove the O-ring from the camshaft timing oil control valve assembly.

      Tip:

      An O-ring is already installed in a new camshaft timing oil control valve assembly. So, the O-ring does not need to be removed when the assembly is replaced with a new one.
