INTAKE MANIFOLD COMPONENTS

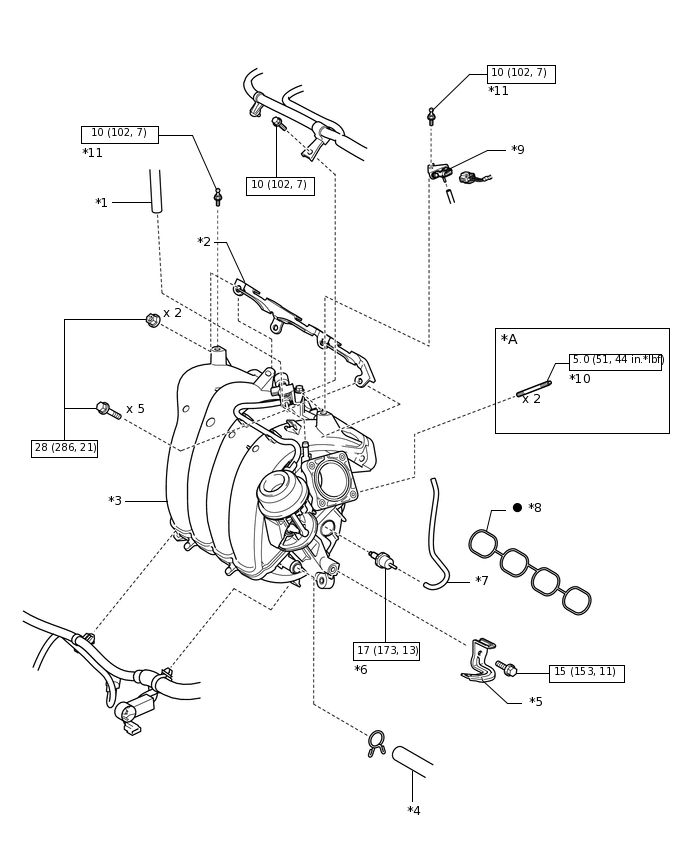

ILLUSTRATION

A294143C03

*A

w/ Stud Bolt

-

-

*1

FUEL VAPOR FEED HOSE

*2

INTAKE MANIFOLD STAY

*3

INTAKE MANIFOLD

*4

VENTILATION HOSE

*5

WIRE HARNESS CLAMP BRACKET

*6

GAS FILTER

*7

AIR HOSE

*8

NO. 1 INTAKE MANIFOLD TO HEAD GASKET

*9

VACUUM SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR)

*10

STUD BOLT

*11

ENGINE COVER JOINT

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
