REGISTER ILLUMINATION(for Driver Side) INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

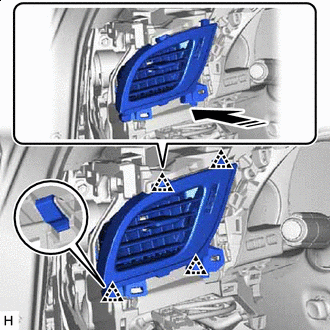

    1. B006CFXC02
      B006DHE Install in this Direction

      Attach the clip to install the No. 1 instrument panel register assembly in the direction indicated by the arrow shown in the illustration.

    2. B006GX0

      Connect the connector.

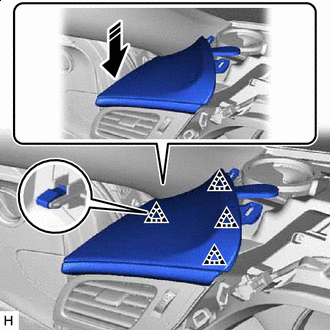

    3. B006E6WC02
      B006DHE Install in this Direction

      Attach the clip to install the No. 1 instrument panel safety pad sub-assembly in the direction indicated by the arrow shown in the illustration.

    4. Install the screw.

  2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD

    Click here

  3. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Click here

  4. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Click here

  5. INSTALL INSTRUMENT SIDE PANEL LH

    Click here
