CRUISE CONTROL SYSTEM
| *A | LHD Models | *B | RHD Models |
| *1 | ECM | *2 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *3 | Inverter with Converter Assembly - MG ECU |
*4 | Throttle Body Assembly - Throttle Control Motor - Throttle Position Sensor |
| *5 | Hybrid Vehicle Transaxle Assembly - MG2 |
*6 | Speed Sensor |

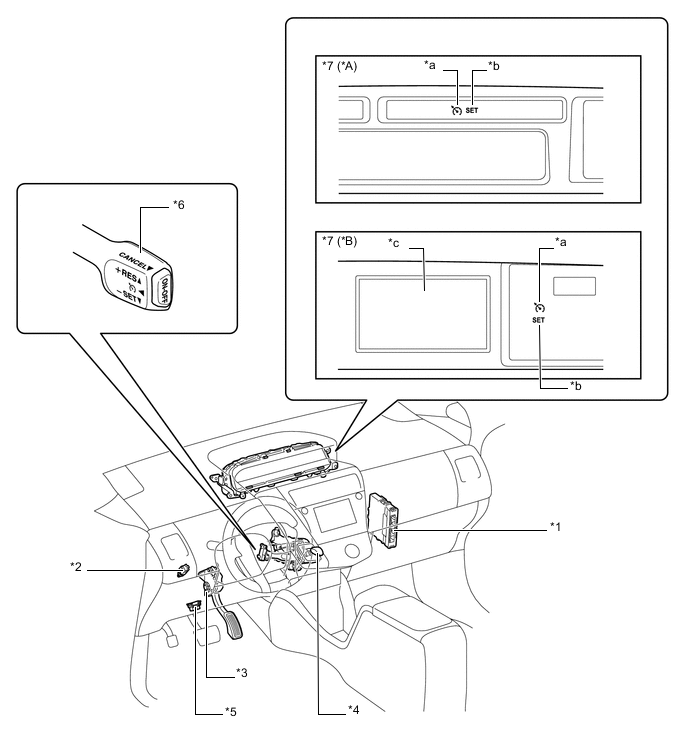

| *A | Models without Multi-information Display | *B | Models with Multi-information Display |
| *1 | Power Management Control ECU | *2 | Stop Light Switch |
| *3 | Accelerator Pedal Sensor Assembly | *4 | Shift Lock Control Unit Assembly - Shift Lever Position Sensor (Shift Sensor) - Shift Lever Position Sensor (Select Sensor) |
| *5 | DLC3 | *6 | Cruise Control Switch |
| *7 | Combination Meter Sub-assembly | - | - |
| *a | Cruise Control Indicator Light | *b | Cruise Control SET Indicator Light |
| *c | Multi-information Display | - | - |
| *1 | Combination Meter Sub-assembly | *2 | Cruise Control Switch |
| *3 | Power Management Control ECU | *4 | Shift Lock Control Unit Assembly - Shift Lever Position Sensor (Shift Sensor) - Shift Lever Position Sensor (Select Sensor) |
| *5 | Accelerator Pedal Sensor Assembly | *6 | Stop Light Switch Assembly |
| *a | Cruise Control Indicator Light | *b | Cruise Control SET Indicator Light |
| *c | Multi-information Display | - | - |
