AUDIO AND VISUAL SYSTEM(for Radio and Display Type) Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier

DTC Code DTC Name
Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier

DESCRIPTION

The radio and display receiver assembly sends a sound signal to the stereo component amplifier assembly via this circuit.

The sound signal that has been sent is amplified by the stereo component amplifier assembly, and then is sent to the speakers.

If there is an open or short in the circuit, sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier assembly or speakers.

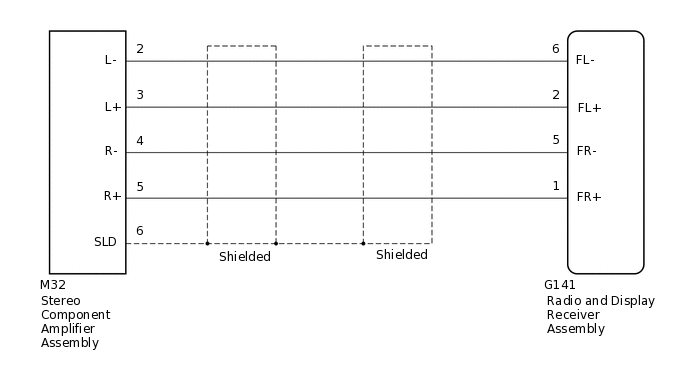

WIRING DIAGRAM

E271826E03

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - STEREO COMPONENT AMPLIFIER ASSEMBLY)

    1. Disconnect the G141 radio and display receiver assembly connector.

    2. Disconnect the M32 stereo component amplifier assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      M32-5 (R+) - G141-1 (FR+)

      Always

      Below 1 Ω

      M32-4 (R-) - G141-5 (FR-)

      Always

      Below 1 Ω

      M32-3 (L+) - G141-2 (FL+)

      Always

      Below 1 Ω

      M32-2 (L-) - G141-6 (FL-)

      Always

      Below 1 Ω

      M32-6 (SLD) - Body ground

      Always

      10 kΩ or higher

      M32-5 (R+) - Body ground

      Always

      10 kΩ or higher

      M32-4 (R-) - Body ground

      Always

      10 kΩ or higher

      M32-3 (L+) - Body ground

      Always

      10 kΩ or higher

      M32-2 (L-) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
