CLOCK INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. INSTALL TELLTALE LIGHT ASSEMBLY (CLOCK)

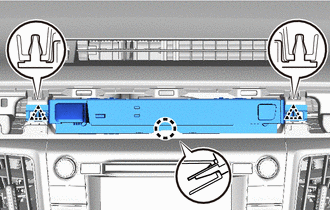

    1. E341532

      Connect the connector.

    2. Attach the claw and 2 clips to install the telltale light assembly (clock).

  2. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Click here
