FRONT EVAPORATOR TEMPERATURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE AIR CONDITIONING RADIATOR ASSEMBLY

    Click here

  2. REMOVE COOLER EXPANSION VALVE

    Click here

  3. REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

    Click here

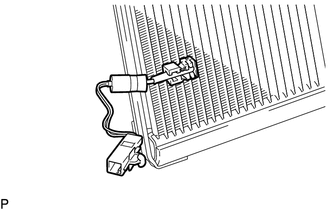

  4. REMOVE NO. 1 COOLER THERMISTOR

    1. E261003

      Remove the No. 1 cooler thermistor.
