REGISTER ILLUMINATION(for Driver Side) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE INSTRUMENT SIDE PANEL LH

    Click here

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Click here

  3. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Click here

  4. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD

    Click here

  5. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY


    1. B006DGO

      Remove the screw.

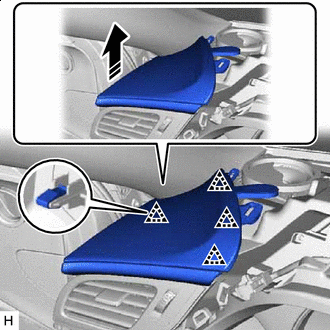

    2. B006FEPC02
      B006DHEC50 Remove in this Direction

      Pull in the direction indicated by the arrow shown in the illustration to detach the clip and remove the No. 1 instrument panel safety pad sub-assembly.

    3. B006GX0

      Disconnect the connector.

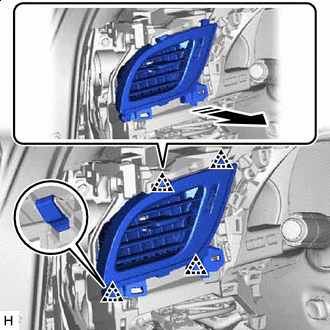

    4. B006F53C02
      B006DHE Remove in this Direction

      Pull in the direction indicated by the arrow shown in the illustration to detach the clip and remove the No. 1 instrument panel register assembly.
