STEERING ANGLE SENSOR COMPONENTS

ILLUSTRATION

B439373C15

*A

for Compact Spare Tire

*B

for Full Size Spare Tire

*1

DECK BOARD ASSEMBLY

*2

BATTERY SERVICE COVER

*3

NEGATIVE AUXILIARY BATTERY TERMINAL

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

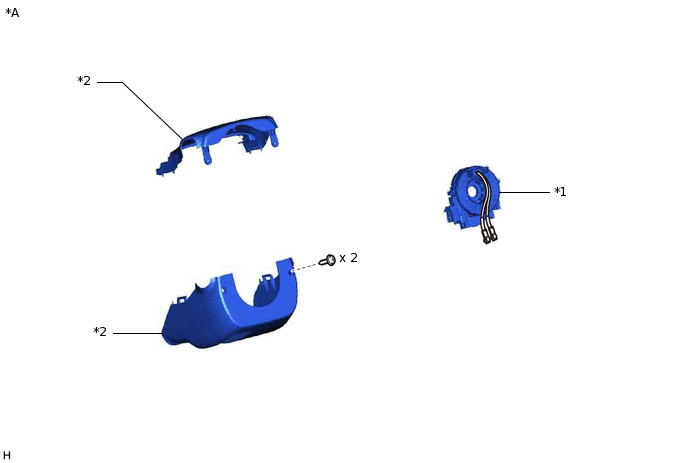

ILLUSTRATION

C344371C01

*A

for Dual Type

-

-

*1

SPIRAL CABLE WITH STEERING ANGLE SENSOR

*2

STEERING COLUMN COVER

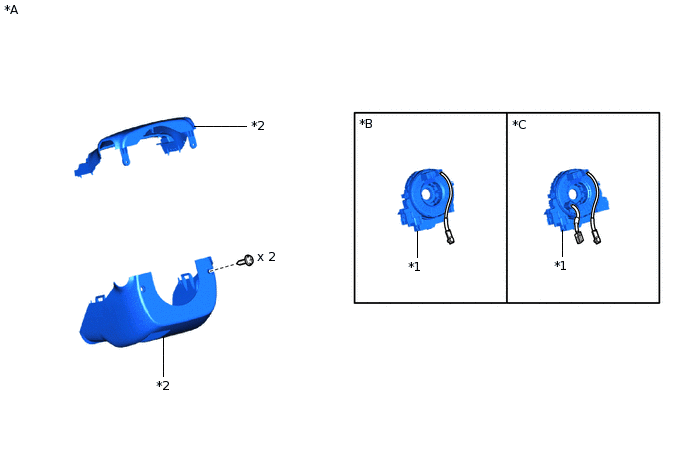

ILLUSTRATION

C344384C01

*A

for Single Type

*B

w/o Steering Heater

*C

w/ Steering Heater

-

-

*1

SPIRAL CABLE WITH STEERING ANGLE SENSOR

*2

STEERING COLUMN COVER
