CURTAIN SHIELD AIRBAG ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE DECK BOARD ASSEMBLY

   Click here

2. REMOVE BATTERY SERVICE COVER

   Click here

3. PRECAUTION

   Note:

   After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

   Click hereClick hereClick hereClick here

4. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

   CAUTION:

   Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

   Note:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click hereClick hereClick here

5. REMOVE ROOF HEADLINING ASSEMBLY

   Click here

6. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

   CAUTION:

   When storing the curtain shield airbag assembly LH, keep the airbag deployment side facing upward.

   1. Check that the power switch is off.

   2. Check that the cable is disconnected from the auxiliary battery negative (-) terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

   3.

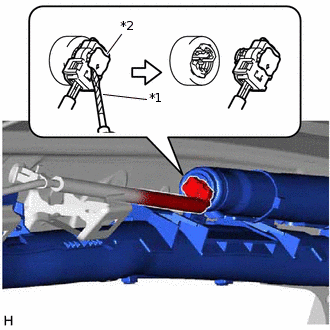

      *1	Protective Tape
      *2	Connector Lock

      Using a screwdriver with the tip wrapped with protective tape, release the airbag connector lock and disconnect the curtain shield airbag connector.

      Note:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

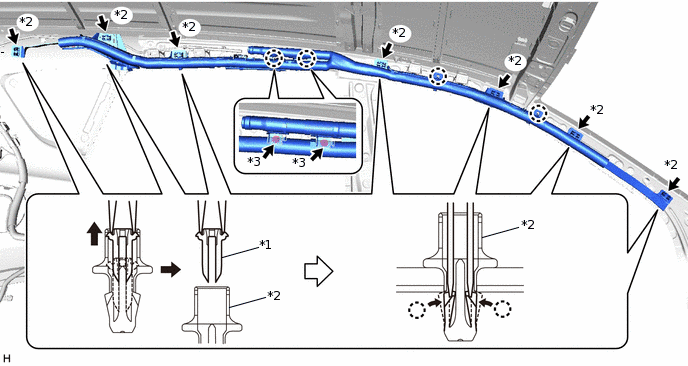

   4. Remove the 7 clips.

      Tip:

      • Using needle-nose pliers, release the lock by pinching the 2 locks of the pin, and pull out the pin from the clip.

      • Using 2 screwdrivers, detach the 2 claws by inserting the screwdrivers into the grooves of the clip as shown in the illustration, and then remove the clip from the vehicle body.

   5. Detach the 4 claws.

   6. Remove the 2 bolts and curtain shield airbag assembly LH.

      Note:

      The bolts must not be reused.



      *1	Pin	*2	Clip
      *3	Bolt	-	-
