LIGHTING SYSTEM Hazard Warning Switch Circuit

DTC Code DTC Name
Hazard Warning Switch Circuit

DESCRIPTION

The combination meter assembly receives the hazard warning signal switch assembly ON signal and controls the operation of the hazard warning lights.

WIRING DIAGRAM

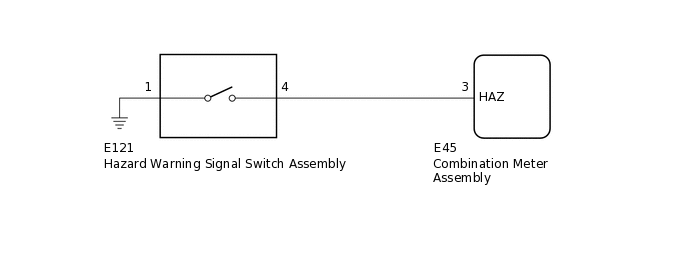

  1. except Sedan

    E259632E24

  2. for Sedan

    E259632E25

PROCEDURE

  1. READ VALUE USING GTS

    1. Connect the GTS to the DLC3.

    2. Turn the ignition switch to ON.

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Combination Meter / Data List.

    5. Perform the Active Test according to the display on the GTS.

      Body Electrical > Combination Meter > Data List

      Tester Display

      Measurement Item

      Range

      Normal Condition

      Diagnostic Note

      Hazard Flasher Switch

      Hazard warning signal switch signal

      ON or OFF

      ON: Hazard warning signal switch on

      OFF: Hazard warning signal switch off

      -

      Body Electrical > Combination Meter > Data List

      Tester Display

      Hazard Flasher Switch

      OK

      Normal conditions listed above are displayed.

    Result

    Proceed to

    OK

    NG
    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Click hereClick here

    NG

  2. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    1. Remove the hazard warning signal switch assembly.

      Click here

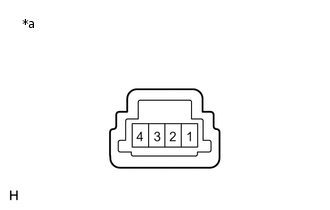

    2. E136319C36

      *a

      Component without harness connected

      (Hazard Warning Signal Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      4 - 1

      Hazard warning signal switch on

      Below 1 Ω

      Hazard warning signal switch off

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Click here

    OK

  3. CHECK HARNESS AND CONNECTOR (HAZARD WARNING SIGNAL SWITCH ASSEMBLY - COMBINATION METER ASSEMBLY AND BODY GROUND)

    1. Disconnect the E45 combination meter assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Table 1. except Sedan

      Tester Connection

      Condition

      Specified Condition

      E121-4 - E45-3 (HAZ)

      Always

      Below 1 Ω

      E121-4 - Body ground

      Always

      10 kΩ or higher

      E121-1 - Body ground

      Always

      Below 1 Ω
      Table 2. for Sedan

      Tester Connection

      Condition

      Specified Condition

      E41-4 - E45-3 (HAZ)

      Always

      Below 1 Ω

      E41-4 - Body ground

      Always

      10 kΩ or higher

      E41-1 - Body ground

      Always

      Below 1 Ω

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE COMBINATION METER ASSEMBLY

    for Hatchback, Wagon:Click here

    for Sedan:Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
