WATER PUMP REMOVAL

PROCEDURE

  1. REMOVE RADIATOR SUPPORT OPENING COVER

    Click here

  2. REMOVE NO. 2 CYLINDER HEAD COVER

    Click here

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  4. REMOVE REAR ENGINE UNDER COVER RH

    Click here

  5. PRECAUTION

    Note:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Click here).

  6. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  7. DRAIN ENGINE COOLANT

    Click here

  8. REMOVE V-RIBBED BELT

    Click here

  9. REMOVE GENERATOR ASSEMBLY

    Click here

  10. REMOVE WATER PUMP ASSEMBLY

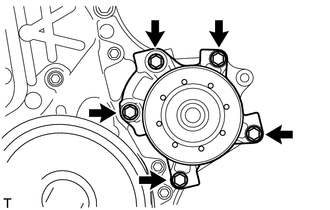

    1. A234266

      Remove the 5 bolts and water pump from the timing chain cover.

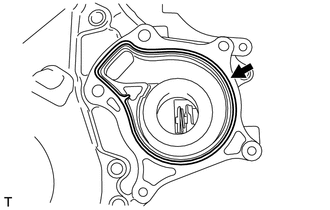

    2. U121306

      Remove the gasket from the timing chain cover.
