BODY STRUCTURE


  1. OUTLINE


    1. Lightweight and Highly Rigid Body


      1. High-strength steel and ultra high-strength steel are used in order to achieve excellent body rigidity and a lightweight body.

    2. Safety Features


      1. The impact absorbing structure minimizes cabin deformation by effectively helping to absorb the impact energy in the event of a front, side or rear collision. This provides high performance occupant protection.

    3. Rust-resistant Body


      1. Rust-resistant performance is enhanced by the extensive use of anti-corrosion sheet steel, as well as by an anticorrosion treatment that includes the application of anti-rust wax, sealer and anti-chipping paint to the easily corroded parts such as the hood and fender.

    4. Low Vibration and Low Noise Body


      1. Effective application of vibration damping and noise suppressant materials reduces engine, wind and road noise.

    5. Aerodynamics


      1. Various types of airflow routing parts that control airflow are provided under the floor, and an undercover is provided to make the under-floor area flat in order to ensure excellent aerodynamic performance.

  2. MAIN FEATURES


    1. Exterior Design Theme


      1. Urban Sport Gear


        • Luxurious Elegance, Expressed Simply and Boldly

        • The Most Tightly-designed Massive SUV

        • Urban and Stylish Design

    2. Front and Side Design

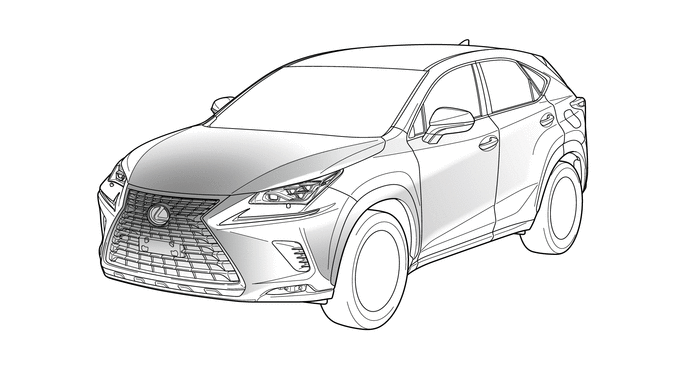

      1. The characteristic NX design theme, which originates in the spindle-shaped body, is expressed through the three-dimensional form that runs from the hard spindle grille to the doors through the engine hood.

        B008G8V

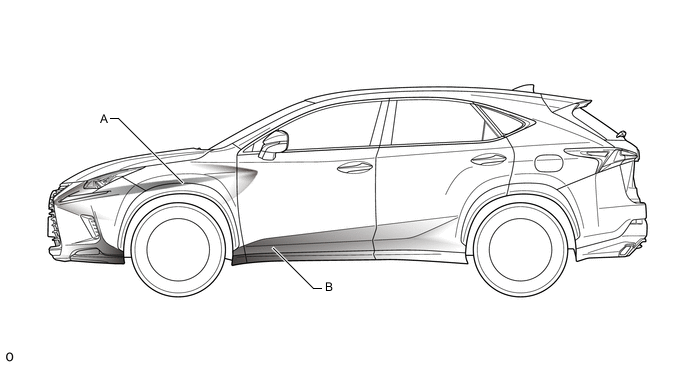

      2. The cross-sectional peak of the front bumper and the L-shaped light are positioned along a straight line towards the wheel flare, expressing the strength and sharp advancement of the protruding wheel flare (A in illustration).

      3. The shape of the rocker under the door runs to the lower edge of the spindle grille, expressing a dynamic and low center of gravity (B in illustration).

        B008G1CN01

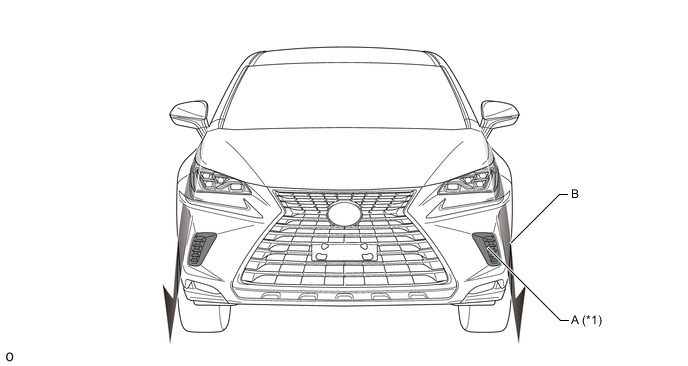

      4. The side grille (radiator grille garnish) is separated from the bumper to achieve a unique design. Also, the side grille functions as an air intake to provide superior driving stability (A in illustration).

      5. The fin-shaped bumper corners support the bottom corners of the trapezoid shape that originates from the fender tops, emphasizing a good stance (B in illustration).

        B008G9TC01
        *1 Radiator Grille Garnish - -

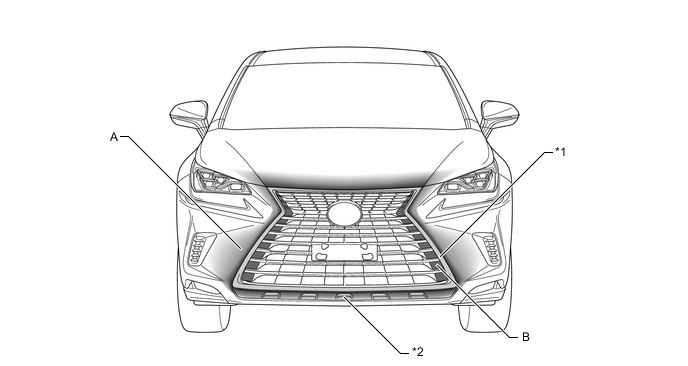

      6. The entire circumference of the spindle shape is surrounded by the same color as the bumper and satin plated molding, emphasizing the strong design of the spindle grille (A in illustration).

      7. The radiator grille is surrounded by outer panels with a sense of thickness and thin satin plated molding and used together with smoke-plated molding (integrated with the SUV under guard below), emphasizing an "Urban Sports Gear" nature.

      8. The inside of the radiator grille consists of layered blocks that repeat the spindle motif, emphasizing a sense of three-dimensionality and the fact that it is part of the Lexus SUV family (B in illustration).

        B008G3YC01
        *1 Satin Plated Molding *2 Smoke-plated Molding

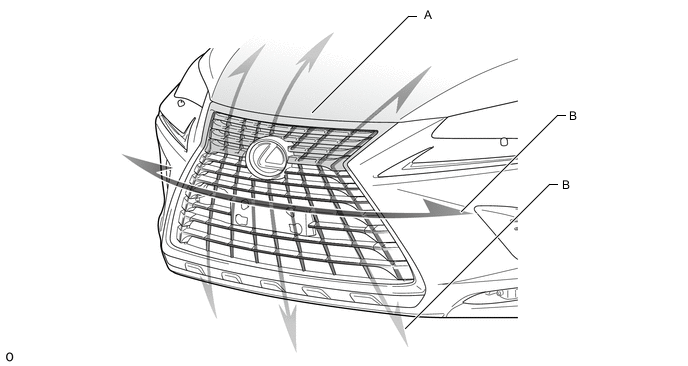

      9. The horizontal bars of the radiator grille visually extend the surface of the engine hood, expressing refined aerodynamic performance and a strong protruding feel (A in illustration).

      10. The horizontal bars of the radiator grille are used together with vertically flowing lines that change near the Lexus emblem to emphasize a sense of luxury (B in illustration).

        B008G5KN01

      11. The horizontal bars of the radiator grille are used together with vertically flowing lines that change near the Lexus emblem to emphasize a sense of luxury (B in illustration).

        B008G5P

    3. Rear Design

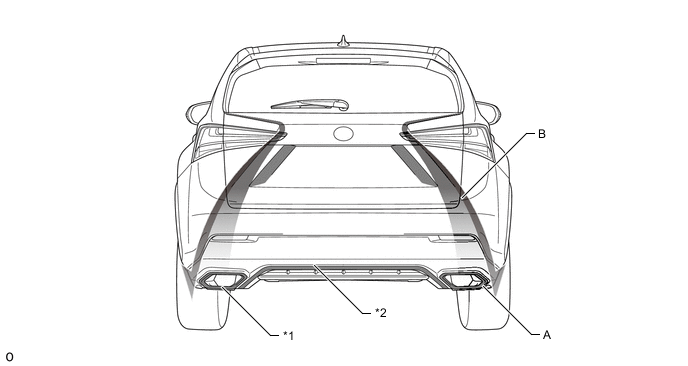

      1. Baffle type exhaust tail ends are used to express strength (through their large diameters) and a sense of integration with the rear bumper (A in illustration).

      2. The character line of the back door with the spindle motif is supported by baffles and trapezoidal fin to emphasize a stable stance that extends towards the tires (B in illustration).

        B008G9IC01
        *1 Exhaust Tail End *2 Trapezoidal Fin

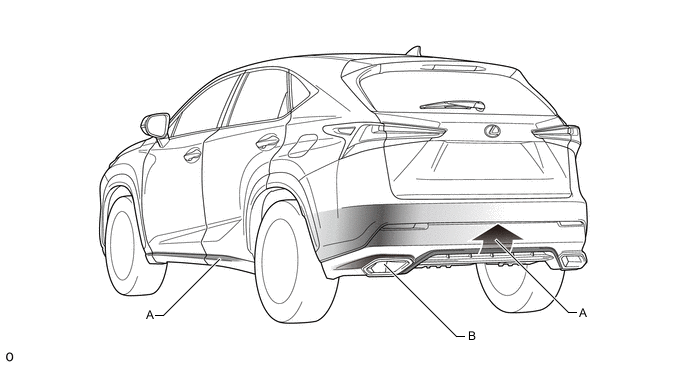

      3. The rear bumper is placed high to express a sense of agility. In addition, the character lines from the side rockers connect to the exhaust tail ends to emphasize a uniquely low center of gravity (A in illustration).

      4. The exhaust tail ends are positioned low on the outer sides of the rear bumper corners to emphasize the good quality of the low, wide and stable stance (B in illustration).

        B008G9KN01

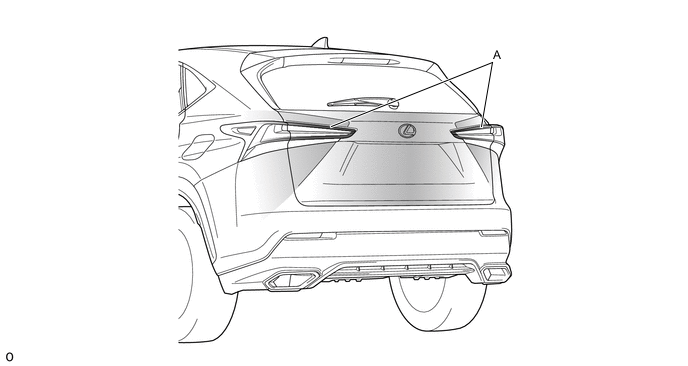

      5. The L-shaped taillight lenses are given a three-dimensional structure that, together with black garnish, protrudes far from the body while simultaneously piercing the center mass of the back door.

        B008GA8N01

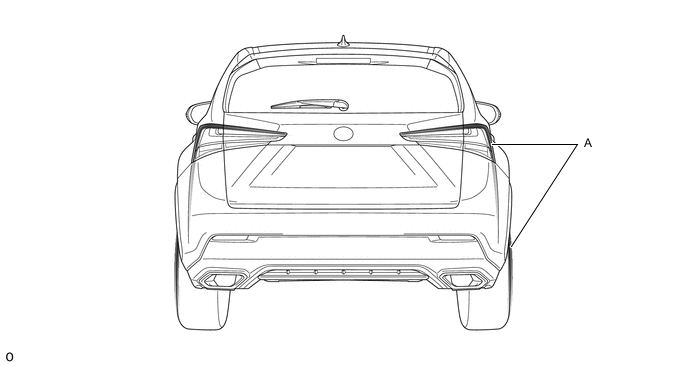

      6. The protruding edges of the black garnish that connects to the rear bumper character line emphasize the stable stance as if the tires are firmly holding onto the ground.

        B008GA0N01

    4. F SPORT

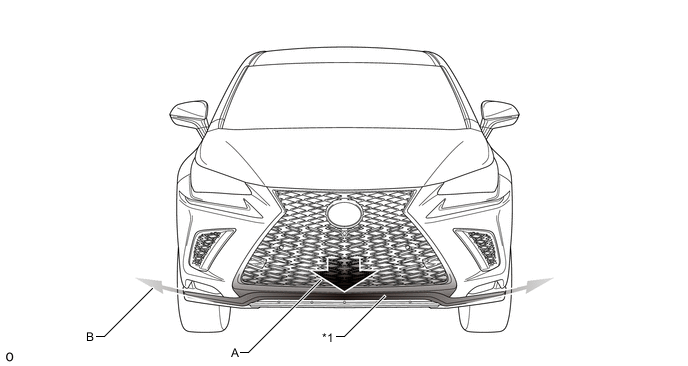

      1. The spindle-shaped radiator grille that boldly opens downwards (A in illustration) and the lower bumper that connects to the side rockers (B in illustration) emphasize a low center of gravity and a sense of wideness in pursuit of sportiness.

      2. The lower bumper ornamentation (front bumper guard No. 2) incorporates height differences and high-intensity silver paint and is shaped to run to the sides.

        B008G8DC01
        *1 Front Bumper Guard No. 2 - -

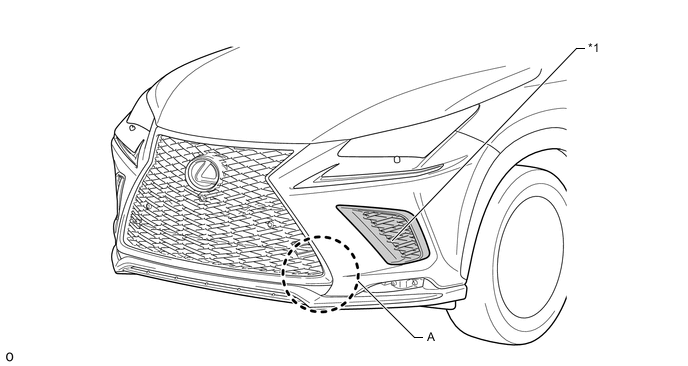

      3. The lower edge of the radiator grille frame is connected to the lower bumper to provide a sense of originality while simultaneously emphasizing that the vehicle is part of the Lexus SUV family (A in illustration).

      4. The front fascia is tightly designed so that the radiator grille garnish, which uses the same F-shaped mesh as the radiator grille, is tucked into the side of the bumper.

        B008G5UC01
        *1 Radiator Grille Garnish - -

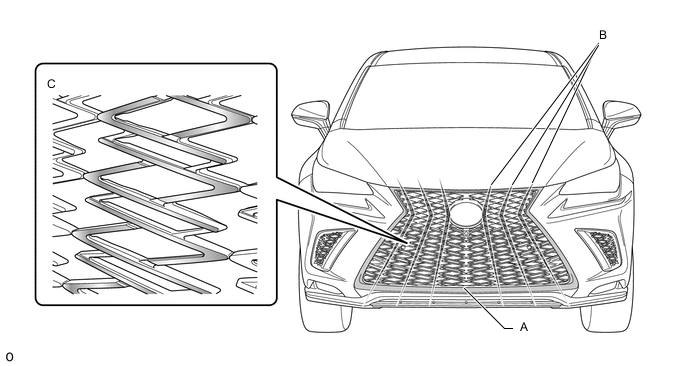

      5. The radiator grille frame uses the same jet-black plated finish that is used for other F series vehicles, achieving a sense of unity with the F series and F-SPORT series (A in illustration).

      6. The vertically flowing characteristic of the F series radiator grille (B in illustration) is continued in a new F-shaped mesh pattern that changes three-dimensionally as it vertically weaves back and forth (C in illustration).

        B008G7VN01

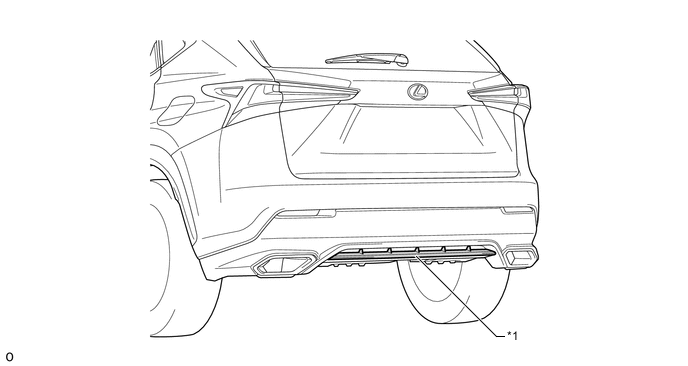

      7. The center lower edge of the rear bumper is equipped with a rear bumper extension that uses the same high-intensity silver paint as the lower edge of the front bumper, achieving a sense of unity with the front design.

        B008G9NC01
        *1 Rear Bumper Extension - -

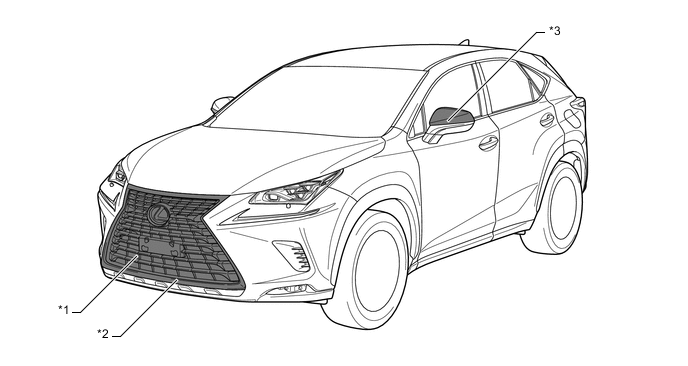

    5. Sport Package

      B008G10C01
      *1 Radiator Grille (Black) *2 Radiator Grille Molding (Black)
      *3 Outer Rear View Mirror Assembly (Black) - -
