MUDGUARD REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure described below is for the LH side.

PROCEDURE

  1. REMOVE FRONT FENDER MUDGUARD

    1. B326586

      Remove the 3 screws and front fender mudguard.

  2. REMOVE REAR QUARTER PANEL MUDGUARD

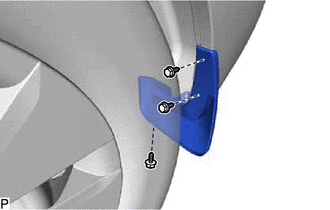

    1. B326587

      Remove the 3 screws and rear quarter panel mudguard.
