STARTER COMPONENTS

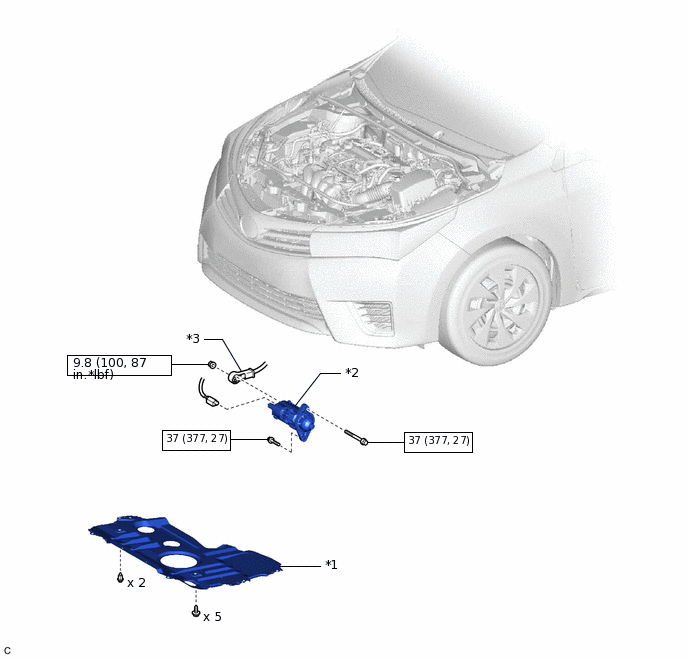

ILLUSTRATION
*1 |
NO. 1 ENGINE UNDER COVER |
*2 |
STARTER ASSEMBLY |
*3 |
TERMINAL CAP |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*1 |
MAGNET STARTER SWITCH ASSEMBLY - PLUNGER - RETURN SPRING |
*2 |
PLANET CARRIER SHAFT SUB-ASSEMBLY |
*3 |
STARTER ARMATURE ASSEMBLY |
*4 |
STARTER BRUSH HOLDER ASSEMBLY |
*5 |
STARTER CLUTCH SUB-ASSEMBLY |
*6 |
STARTER YOKE ASSEMBLY |
*7 |
STARTER COMMUTATOR END FRAME |
*8 |
STARTER COMMUTATOR END FRAME COVER |
*9 |
WASHER |
*10 |
SLOTTED WASHER |
*11 |
PLANETARY GEAR |
*12 |
PLATE |
*13 |
DRIVE LEVER |
*14 |
STARTER DRIVE HOUSING |
*15 |
SNAP RING |
*16 |
PINION STOP COLLAR |
*17 |
PLANET CARRIER |
*18 |
STARTER DRIVE HOUSING COVER |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
High-temperature Grease |
- |
- |
