ROCKER PANEL MOULDING INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

  • A bolt without a torque specification is shown in the standard bolt chart (Click here).

PROCEDURE

  1. INSTALL ROCKER PANEL MOULDING LH

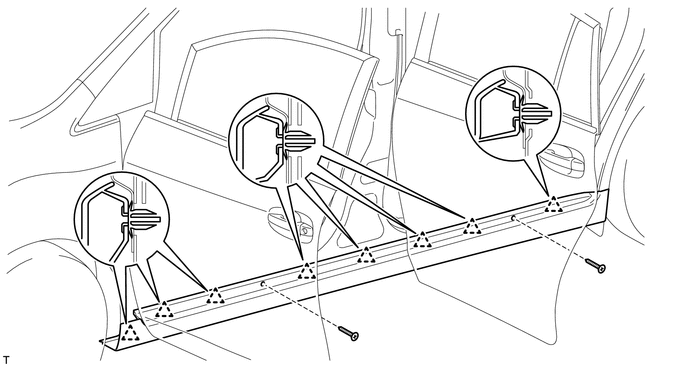

    1. Attach the 8 clips to install the rocker panel moulding.

    2. Install the 2 screws.

      B223771

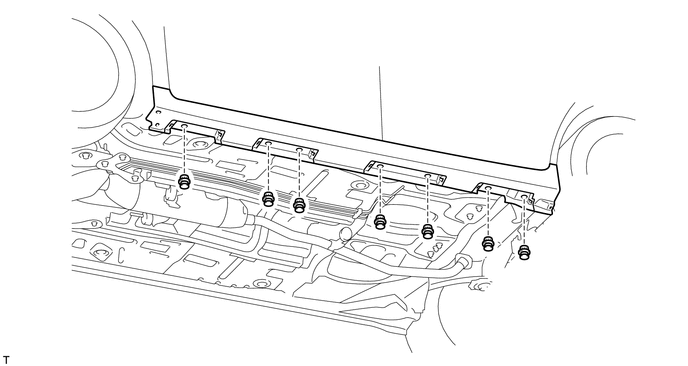

    3. Install the 7 grommets.

      B221147

  2. INSTALL REAR WHEEL HOUSE FRONT PLATE LH

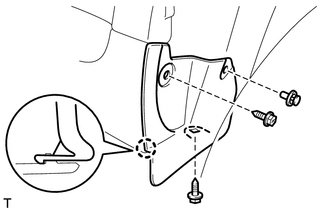

    B221146

    1. Attach the claw to install the rear wheel house front plate.

    2. Attach the clip and install the 2 screws.

  3. INSTALL FRONT SIDE MUDGUARD LH

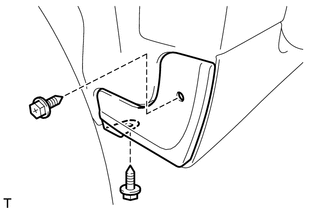

    B221145

    1. Install the front side mudguard with the 2 screws.
