VEHICLE STABILITY CONTROL SYSTEM DTC CHECK / CLEAR

DTC CHECK/CLEAR (When Using Intelligent Tester)

1. Check for DTCs.

   1. Connect the intelligent tester to the DLC3.

   2. Turn the engine switch on (IG).

   3. Turn the intelligent tester on.

   4. Enter the following menus: Chassis / ABS/VSC/TRC / DTC.

   5. Read the DTCs by following the prompts on the intelligent tester screen.

2. Clear the DTCs.

   1. Connect the intelligent tester to the DLC3.

   2. Turn the engine switch on (IG).

   3. Turn the intelligent tester on.

   4. Enter the following menus: Chassis / ABS/VSC/TRC / DTC.

   5. Operate the intelligent tester to clear the codes.

      Tip:

      Refer to the intelligent tester operator's manual for further details.

DTC CHECK/CLEAR (When Using SST Check Wire)

1. Check for DTCs.

   1.

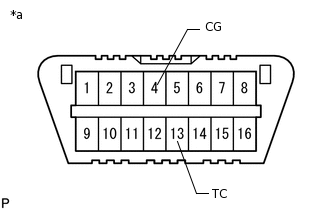

      *a	Front view of DLC3

      Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

      09843-18040

   2. Turn the engine switch on (IG).

   3. Read the DTCs output from the ABS warning light and slip indicator light in the combination meter.

      Tip:

      • When the system is normal, the ABS warning light and slip indicator light blink at 0.25 second intervals (0.25 seconds on and 0.25 seconds off).

      • When only 1 DTC is stored, the light outputs the same code after an interval of 4 seconds. Example: When DTC 21 is stored, the light blinks twice, turns off for 1.5 seconds, blinks once, turns off for 4 seconds, and then repeats this output pattern.

      • When 2 or more DTCs are stored, the light outputs the codes with an interval of 2.5 seconds between each different code, and the output of all codes repeats after an interval of 4 seconds.

      • If no code is output, inspect the TC and CG terminal circuit and the ABS warning light and slip indicator light circuits.

      Trouble Area	See Procedure
      TC and CG terminal circuit	Click here
      ABS warning light circuit (Remains on)	Click here
      ABS warning light circuit (Does not come on)	Click here
      Slip indicator light circuit (Remains on)	Click here
      Slip indicator light circuit (Does not come on)	Click here

   4. The codes are explained in the code table.

      Table 1. ABS DTC

      ABS Warning Light Display	Intelligent Tester Display
      11	C0278
      12	C0279
      21	C0226
      22	C0236
      23	C0246
      24	C0256
      25	C1225
      26	C1226
      27	C1227
      28	C1228
      31	C1401
      	C1405
      	C1409
      32	C1402
      	C1406
      	C1410
      33	C1403
      	C1407
      	C1411
      34	C1404
      	C1408
      	C1412
      35	C1413
      36	C1414
      37	C1337
      38	C1415
      39	C1416
      41	C1241
      	C1417
      42	C1242
      43	C1243
      44	C1419
      	C1420
      	C1442
      45	C1245
      46	C1421
      	C1422
      	C1423
      	C1424
      	C1455
      	C1456
      	C1457
      	C1458
      49	C1425
      51	C1251
      52	C1252
      53	C1253
      54	C1254
      56	C1256
      	C1452
      57	C1257
      58	C1453
      	C1454
      68	C1268
      94	U0073
      95	U0124
      97	C1381
      A1*	U0114

      • *: The light blinks 10 times, turns off for 1.5 seconds, and then blinks once.

      Table 2. VSC DTC

      Slip Indicator Light Display	Intelligent Tester Display
      13	C120A
      31	C1432
      	C1433
      	C1434
      32	C1232
      34	C1435
      	C1436
      	C1443
      36	C1210
      39	C1336
      43*	-
      47	C1340
      51	C1201
      53	C1203
      62	U0123
      63	U0126
      64	C1380
      65	C1437
      	U0100
      66	C1290
      	C1439
      	C1445
      98	C1440

      • *: This DTC is output when the VSC system detects a malfunction in the ABS.

   5. Disconnect terminals 13 (TC) and 4 (CG) of the DLC3.

      If 2 or more DTCs are output at the same time, the DTCs are output in ascending order.

2. Clear the DTCs.

   1.

      Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

      09843-18040

      Table 3. Text in Illustration

      *a	Front view of DLC3

   2. Turn the engine switch on (IG).

   3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.

   4. Check that the ABS warning light and slip indicator light blink at 0.25 second intervals (0.25 seconds on and 0.25 seconds off).

   5. Remove SST from the terminals of the DLC3.

END OF DTC CHECK/CLEAR

1. Turn the engine switch on (IG).

2. Check that the ABS warning light and slip indicator light go off within approximately 3 seconds.
