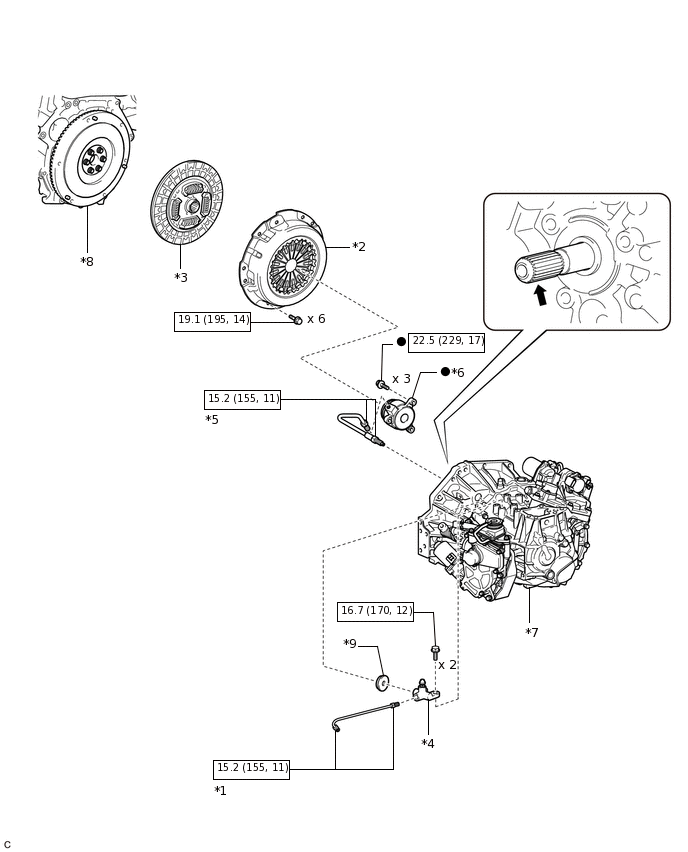

CLUTCH UNIT(for EC65A) COMPONENTS
ILLUSTRATION
*1 |
BLEEDER CLUTCH RELEASE TUBE |
*2 |
CLUTCH COVER ASSEMBLY |
*3 |
CLUTCH DISC ASSEMBLY |
*4 |
CLUTCH RELEASE BLEEDER SUB-ASSEMBLY |
*5 |
CLUTCH RELEASE CYLINDER TO BLEEDER TUBE |
*6 |
CLUTCH RELEASE WITH BEARING CYLINDER ASSEMBLY |
*7 |
MULTI-MODE MANUAL TRANSAXLE ASSEMBLY |
*8 |
FLYWHEEL SUB-ASSEMBLY |
*9 |
CLUTCH TUBE BOOT |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Clutch spline grease |
- |
- |
