ROAD SIGN ASSIST SYSTEM


  1. OPERATION


    1. The combination meter assembly displays recognized signs on the multi-information display based on information of road signs recognized by the forward recognition camera.

    2. The RSA system display mode can be selected by switching the display mode of the multi-information display through operation of the meter control switches in the steering pad switch assembly

    3. When the driving assist system information tab is selected for display on the multi-information display, road signs recognized by the forward recognition camera are displayed on the upper portion of the multi-information display.

    4. A maximum of 3 signs can be displayed simultaneously. When 3 signs are displayed, the signs are displayed in the following order from left to right: speed limit related, speed limit with supplemental sign related and no overtaking related.

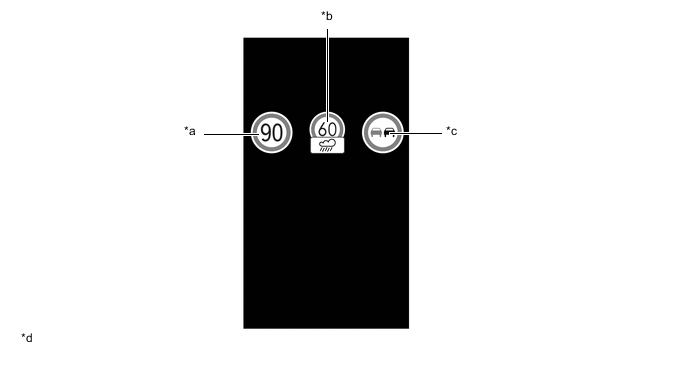

      A01P7WZC01
      *a Speed Limit Related *b Speed Limit with Supplemental Sign Related
      *c No Overtaking Related *d The illustration shown is an example only. The illustration may differ from the actual vehicle screen.

    5. When an information tab other than the driving assist system information tab is selected for display on the multi-information display, road signs recognized by the forward recognition camera are displayed as pop-ups on the top center portion of the multi-information display. Furthermore, the pop-up display is only for speed limit signs. It is not displayed for any overtaking signs and speed limit with supplemental signs.

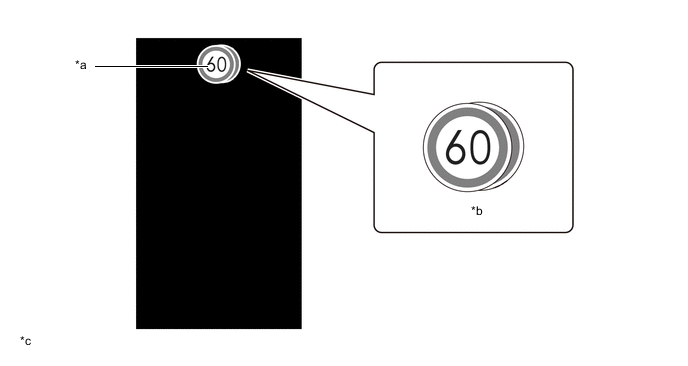

      A01P7Z4C01
      *a Speed Limit Related *b Multiple Road Sign Recognized
      *c The illustration shown is an example only. The illustration may differ from the actual vehicle screen. - -

    6. When there is a malfunction in the RSA system or the system is temporarily unusable, a warning message is displayed on the multi-information display, the master warning light illuminates and the buzzer sounds.

      Condition Multi-information Display Master Warning Light Buzzer

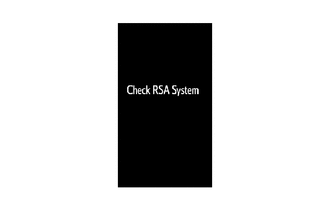

      System malfunction A01P83V Illuminates Sounds

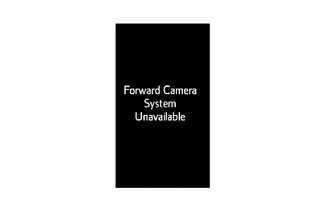

      Forward recognition camera temperature high A01P86E - -

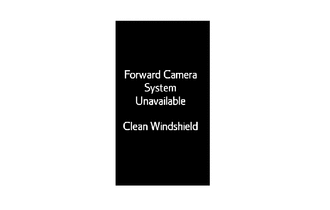

      Windshield glass dirty A01P7PS - -
