WASHER NOZZLE(for Front Side) ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    1. Operate the washer nozzle sub-assemblies and check the position that the windshield washer fluid hits the windshield glass.

      Standard

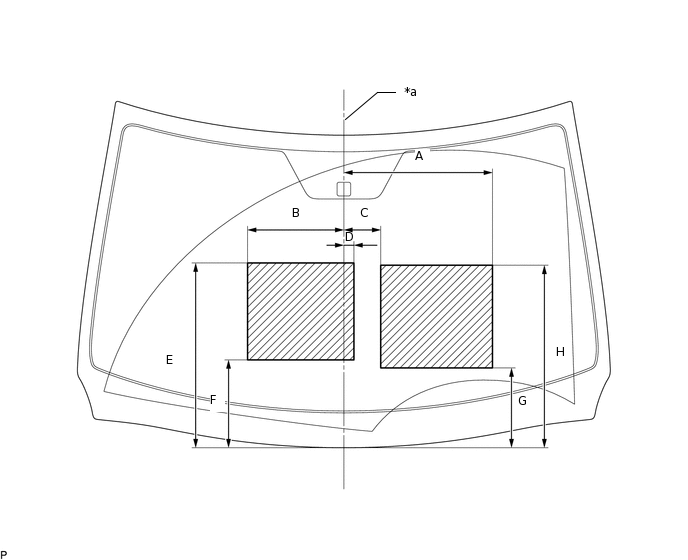

      Windshield washer fluid hits the windshield glass in the areas shown in the illustration.

      E295072C01

      *a

      Vehicle Center Line

      -

      -
      V100155

      Measurement

      -

      -

      Standard Measurement

      Area

      Measurement

      Area

      Measurement

      A

      355 mm (1.16 ft.)

      B

      230 mm (9.06 in.)

      C

      90 mm (3.54 in.)

      D

      25 mm (0.984 in.)

      E

      440 mm (1.44 ft.)

      F

      210 mm (8.27 in.)

      G

      190 mm (7.48 in.)

      H

      435 mm (1.43 ft.)
      Tip:

      If the result is not as specified, adjust the washer nozzle sub-assembly.
