BACK-UP LIGHT SWITCH REMOVAL

PROCEDURE

  1. PRECAUTION

    Note:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click hereClick here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  3. REMOVE BATTERY

    Click hereClick hereClick here

  4. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Click hereClick hereClick here

  5. SUPPORT MULTI-MODE MANUAL TRANSAXLE ASSEMBLY

    1. Support the multi-mode manual transaxle assembly with a jack.

  6. REMOVE ENGINE MOUNTING INSULATOR LH

    Click hereClick here

  7. REMOVE ENGINE MOUNTING BRACKET LH

    Click hereClick here

  8. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

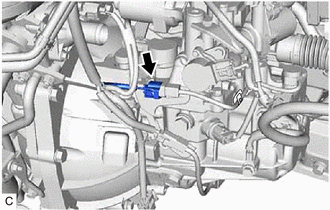

    1. C303277

      Disconnect the back-up light switch assembly connector.

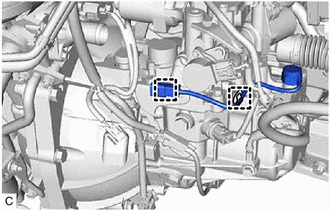

    2. C303278

      Disengage the 2 clamps and disconnect the back-up light switch assembly wire harness from the multi-mode manual transaxle assembly.

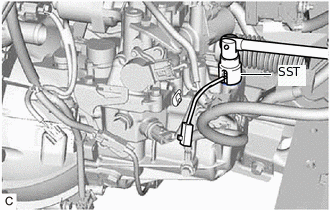

    3. C303279N01

      Using SST, remove the back-up light switch assembly and gasket from the multi-mode manual transaxle assembly.

      09817-16011
