CRUISE CONTROL SYSTEM PARTS LOCATION
ILLUSTRATION

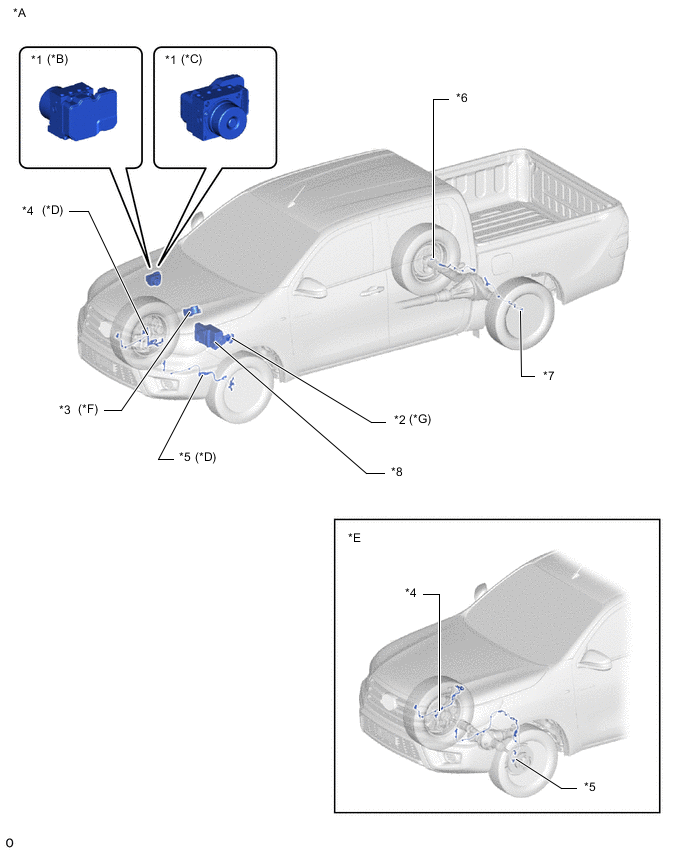

| *A | for LHD | *B | w/ Vehicle Stability Control System |
| *C | w/o Vehicle Stability Control System | *D | for 2WD |
| *E | for 4WD | *F | for 1GR-FE, 2TR-FE |
| *G | for Automatic Transmission | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 | THROTTLE WITH MOTOR BODY ASSEMBLY | *4 | FRONT SPEED SENSOR RH |
| *5 | FRONT SPEED SENSOR LH | *6 | REAR SPEED SENSOR RH |
| *7 | REAR SPEED SENSOR LH | *8 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK - STOP FUSE - EFI-B FUSE |
ILLUSTRATION

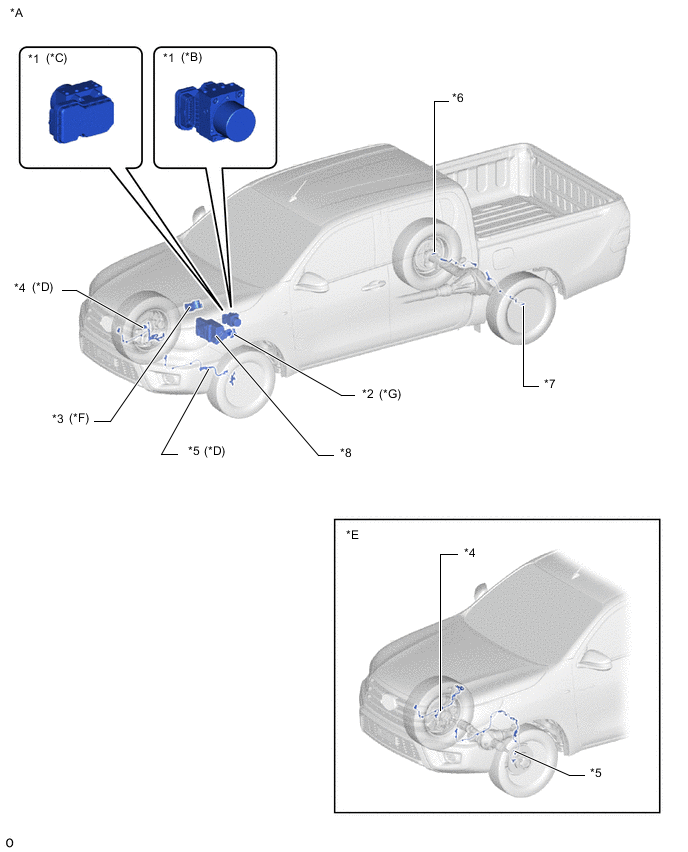

| *A | for RHD | *B | w/ Vehicle Stability Control System |
| *C | w/o Vehicle Stability Control System | *D | for 2WD |
| *E | for 4WD | *F | for 1GR-FE, 2TR-FE |
| *G | for Automatic Transmission | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 | THROTTLE WITH MOTOR BODY ASSEMBLY | *4 | FRONT SPEED SENSOR RH |
| *5 | FRONT SPEED SENSOR LH | *6 | REAR SPEED SENSOR RH |
| *7 | REAR SPEED SENSOR LH | *8 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK - STOP FUSE - EFI-B FUSE |
ILLUSTRATION

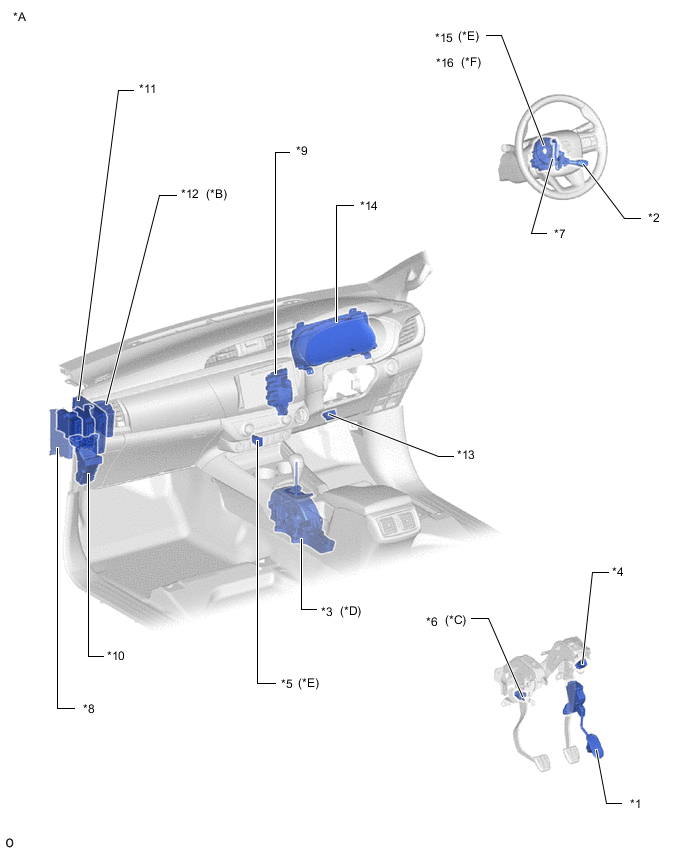

| *A | for LHD | *B | for 4WD |
| *C | for Manual Transmission | *D | for Automatic Transmission |
| *E | w/ Vehicle Stability Control System | *F | w/o Vehicle Stability Control System |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | CRUISE CONTROL MAIN SWITCH |
| *3 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | VSC OFF SWITCH | *6 | CLUTCH SWITCH ASSEMBLY |
| *7 | CRUISE CONTROL SWITCH WIRE | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 1 FUSE - IG1 NO. 4 FUSE - IG2 NO. 3 FUSE |
| *9 | NO. 3 INSTRUMENT PANEL RELAY BLOCK - IG1 NO. 1 RELAY |
*10 | NO. 4 INSTRUMENT PANEL RELAY BLOCK - IG2 RELAY |
| *11 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *12 | SPIRAL CABLE SUB-ASSEMBLY |
| *13 | ECM | *14 | 4 WHEEL DRIVE CONTROL ECU |
| *15 | COMBINATION METER ASSEMBLY | *16 | DLC3 |
ILLUSTRATION

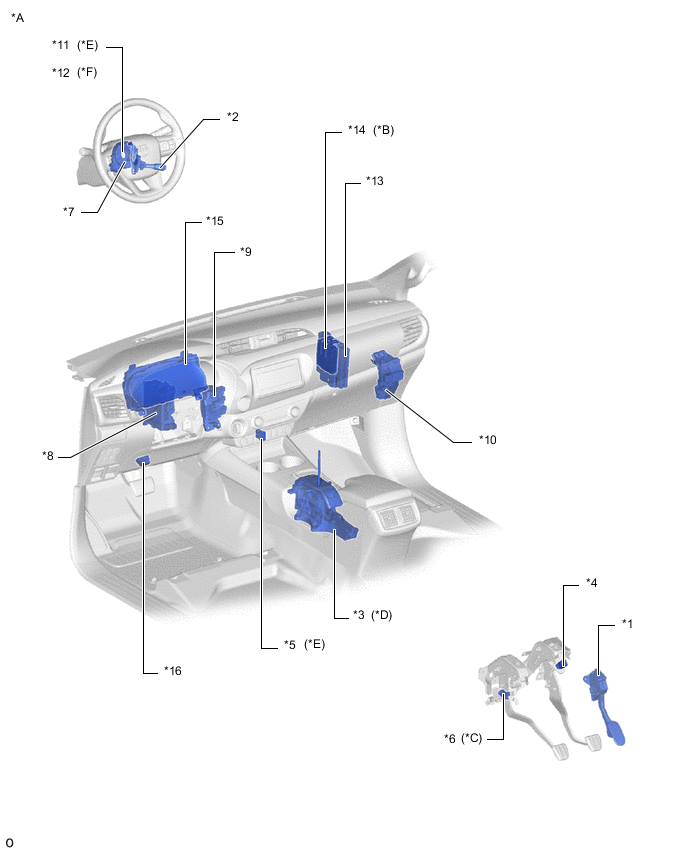

| *A | for RHD | *B | for 4WD |
| *C | for Manual Transmission | *D | for Automatic Transmission |
| *E | w/ Vehicle Stability Control System | *F | w/o Vehicle Stability Control System |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | CRUISE CONTROL MAIN SWITCH |
| *3 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | VSC OFF SWITCH | *6 | CLUTCH SWITCH ASSEMBLY |
| *7 | CRUISE CONTROL SWITCH WIRE | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 1 FUSE - IG1 NO. 4 FUSE - IG2 NO. 3 FUSE |
| *9 | NO. 3 INSTRUMENT PANEL RELAY BLOCK - IG1 NO. 1 RELAY |
*10 | NO. 4 INSTRUMENT PANEL RELAY BLOCK - IG2 RELAY |
| *11 | ECM | *12 | 4 WHEEL DRIVE CONTROL ECU |
| *13 | DLC3 | *14 | COMBINATION METER ASSEMBLY |
| *15 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *16 | SPIRAL CABLE SUB-ASSEMBLY |
