WASHER NOZZLE(for Rear Side) ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT REAR WASHER NOZZLE (CENTER STOP LIGHT ASSEMBLY)

    1. Operate the rear washer nozzle (center stop light assembly) and check the position that the windshield washer fluid hits the back door glass.

      Standard

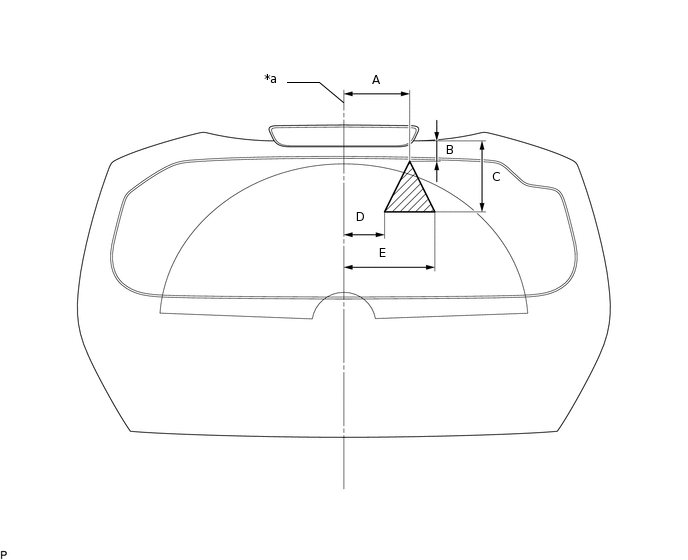

      Windshield washer fluid hits the back door glass in the area shown in the illustration.

      E295073C01

      *a

      Vehicle Center Line

      -

      -
      V100155

      Measurement

      -

      -

      Standard Measurement

      Area

      Measurement

      Area

      Measurement

      A

      130 mm (5.12 in.)

      B

      40 mm (1.57 in.)

      C

      140 mm (5.51 in.)

      D

      80 mm (3.15 in.)

      E

      180 mm (7.09 in.)

      -

      -
      Tip:

      If the result is not as specified, replace the rear washer nozzle (center stop light assembly).
