OCCUPANT CLASSIFICATION ECU REMOVAL

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. REMOVE FRONT SEAT ASSEMBLY RH

    1. for Manual Seat:

      Click here

    2. for Power Seat:

      Click here

  6. REMOVE OCCUPANT DETECTION ECU

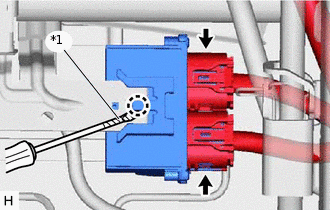

    1. B341152C01

      *1

      Protective Tape

      Disconnect the 2 connectors.

    2. Using a screwdriver, detach the claw to remove the occupant classification ECU.

      Tip:

      Tape the screwdriver tip before use.
