REAR WIPER MOTOR REMOVAL

PROCEDURE

  1. REMOVE BACK DOOR CENTER GARNISH

    Click here

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Click here

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Click here

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Click here

  5. REMOVE REAR WIPER ARM COVER

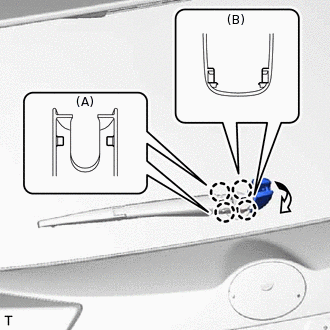

    1. E268342N01

      Detach the 2 claws (A) and open the rear wiper arm cover as shown in the illustration.

    2. Detach the 2 claws (B) and remove the rear wiper arm cover.

  6. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

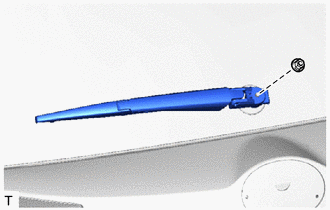

    1. E268343

      Remove the nut and the rear wiper arm and blade assembly.

  7. REMOVE NO. 1 REAR WIPER LINK PIVOT WASHER

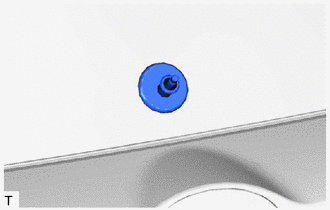

    1. E268344

      Remove the No. 1 rear wiper link pivot washer.

  8. REMOVE REAR WIPER MOTOR ASSEMBLY

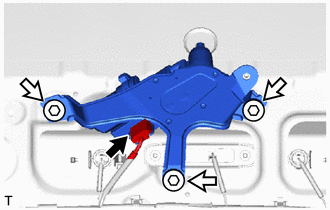

    1. E268345

      Disconnect the connector.

    2. Remove the 3 bolts and rear wiper motor assembly.
