AIR FUEL RATIO SENSOR REMOVAL

PROCEDURE

  1. DISCONNECT WIRE HARNESS

    Click here

  2. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Click here

  3. DISCONNECT INVERTER RESERVE TANK ASSEMBLY

    Click here

  4. REMOVE AIR FUEL RATIO SENSOR

    1. A369692C01
      V100135

      Push

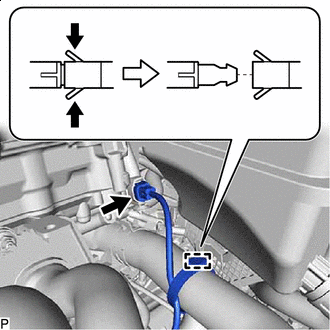

      Remove the radiator hose clamp as shown in the illustration.

    2. Disconnect the air fuel ratio sensor connector.

    3. A369693N01

      Using SST, remove the air fuel ratio sensor from the exhaust manifold.

      09224-00011
