WASHER NOZZLE(for Front Side) COMPONENTS

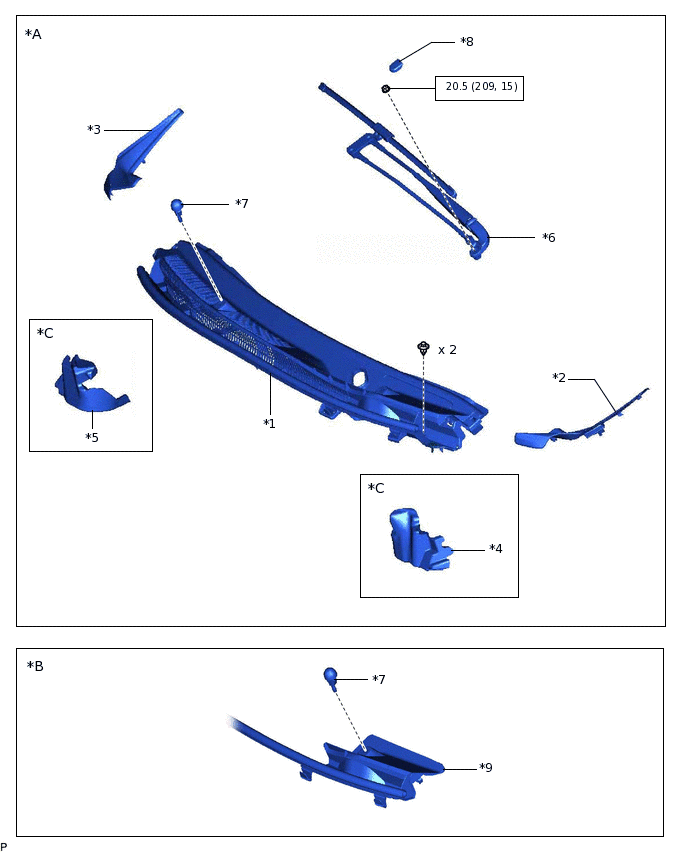

ILLUSTRATION
*A |
for Passenger Side Washer Nozzle |
*B |
for Driver Side Washer Nozzle |
*C |
w/ Side Air Guide |
- |
- |
*1 |
COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY |
*2 |
FRONT FENDER TO COWL SIDE SEAL LH |
*3 |
FRONT FENDER TO COWL SIDE SEAL RH |
*4 |
FRONT NO. 2 SIDE AIR GUIDE |
*5 |
FRONT SIDE AIR GUIDE |
*6 |
FRONT WIPER ARM AND BLADE ASSEMBLY |
*7 |
WASHER NOZZLE SUB-ASSEMBLY |
*8 |
WINDSHIELD WIPER ARM COVER |
*9 |
CENTER COWL TOP VENTILATOR LOUVER |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
