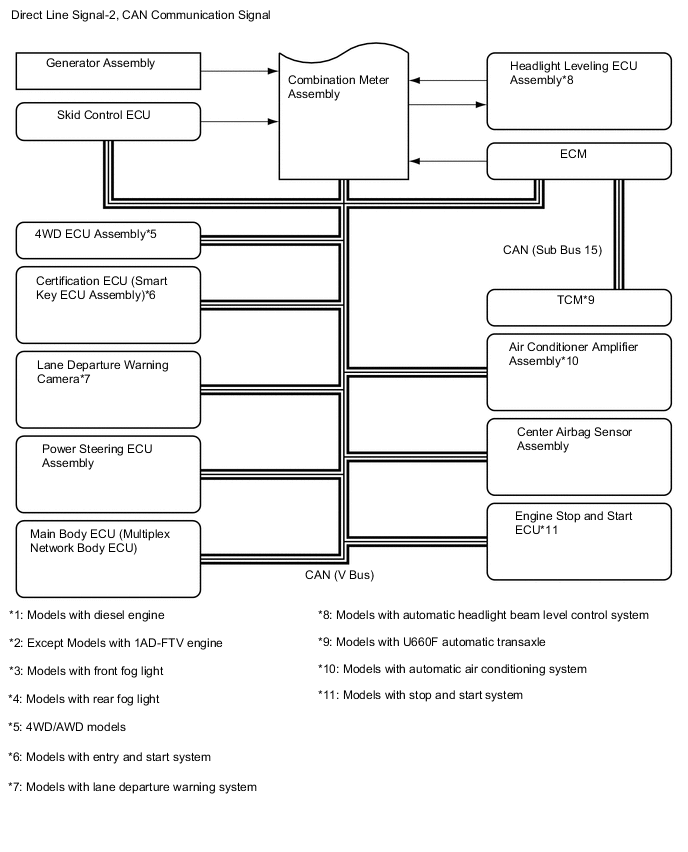

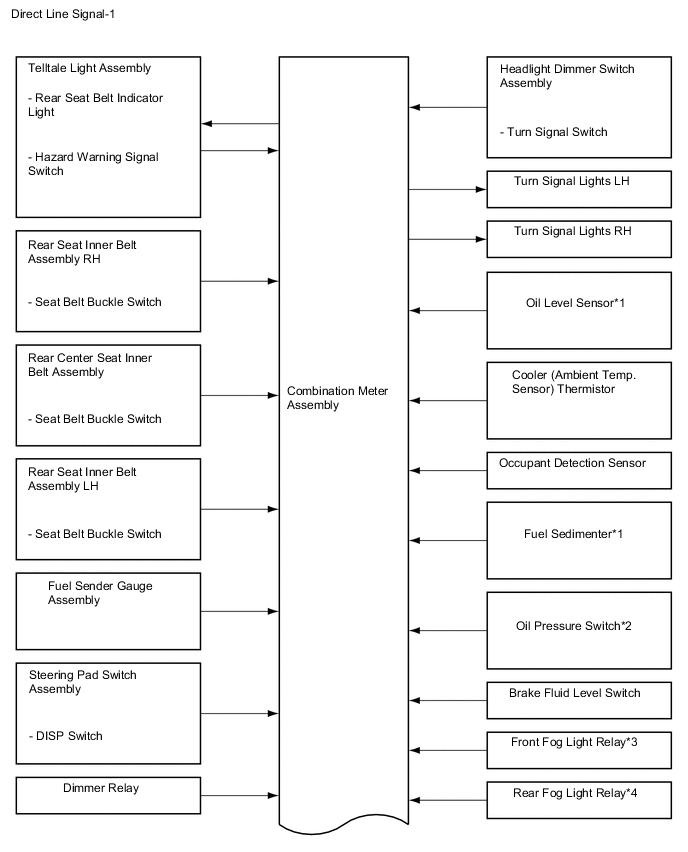

| ECM |
-
Engine speed signal
-
Shift position signal
-
Current range position signal
-
Drive mode signal
-
Fuel injection volume signal
-
Engine coolant temperature signal
-
Buzzer sounding request signal
-
Warning light control signal
-
Indicator light illumination request signal
-
Warning message display request signal
-
Information message display request signal
-
Diagnosis
|
| Center Airbag Sensor Assembly |
|
| Main Body ECU (Multiplex Network Body ECU) |
-
Lighting status signal
-
Door courtesy light switch signal
-
Warning light illumination request signal
-
Warning message display request signal
-
Buzzer sounding request signal
-
Driver seat belt buckle switch signal
|
| Skid Control ECU |
-
Warning message display request signal
-
Warning light illumination request signal
-
Indicator light illumination request signal
-
Vehicle speed signal
-
Diagnosis
|
| Certification ECU (Smart Key ECU Assembly) |
-
Warning message display request signal
-
Information message display request signal
-
Buzzer sounding request signal
-
Immobiliser certification signal
-
Emergency request signal
|
| 4WD ECU Assembly |
|
| Power Steering ECU Assembly |
-
Warning light illumination request signal
-
Buzzer sounding request signal
-
Warning message display request signal
-
Diagnosis
|
| Lane Departure Warning Camera |
-
Warning light illumination request signal
-
Buzzer sounding request signal
-
Warning message display request signal
-
Information message display request signal
-
Diagnosis
|
| Engine Stop and Start ECU |
-
Buzzer sounding request signal
-
ECO indicator request signal
-
ECO off indicator request signal
-
Battery charge light request signal
-
Manual engine start signal
-
Diagnosis
|
