LIN COMMUNICATION SYSTEM

B0020OKC01
*A Models with Power Window System *B Models with All Door One-touch Auto Up-and-down Function
*C Models with Rear Power Window System *D Except Models with 1KD-FTV Engine or 2KD-FTV Engine
*1 Power Window Regulator Motor Assembly LH *2 Power Window Regulator Motor Assembly LH (Rear)
*3 Power Window Regulator Motor Assembly RH (Rear) *4 Power Window Regulator Motor Assembly RH
*5 ECM *6 Generator Assembly

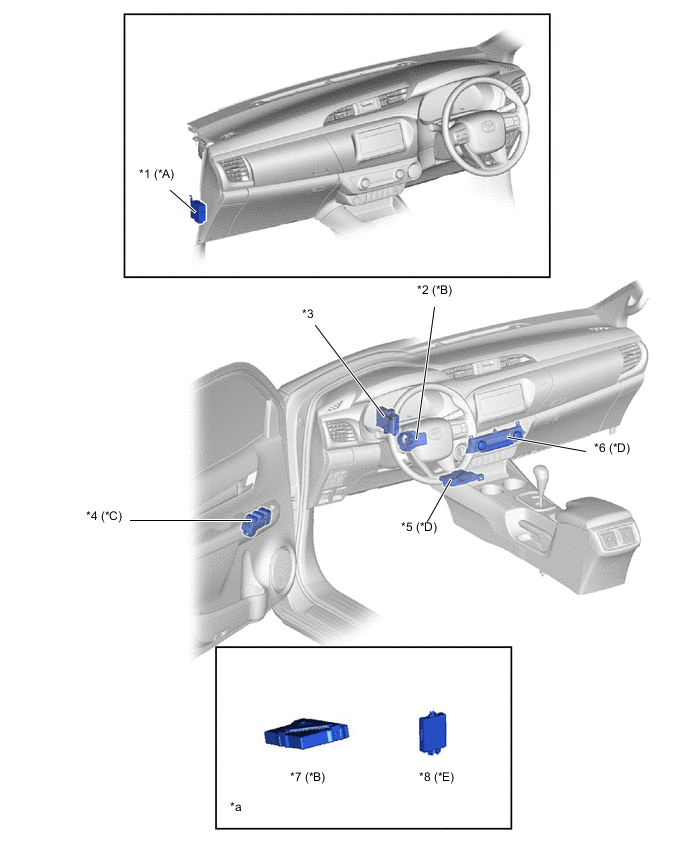

B0020CFC01
*A Models with Double Locking Function *B Models with Entry and Start System
*C Models with Power Window System with All Door One-touch Auto Up-and-down Function *D Models with Automatic Air Conditioning System and Automatic Rear Cooler System
*E Models with ID Code Box - -
*1 Double Lock Control Relay Assembly *2 Steering Lock Actuator Assembly
*3 Body ECU *4 Power Window Regulator Master Switch Assembly
*5 Air Conditioning Amplifier Assembly *6 Air Conditioning Control Assembly
*7 Certification ECU (Smart Key ECU Assembly) *8 ID Code Box (Immobiliser Code ECU)
*a Refer to the Service Bulletin for the installation of the part. - -
