REAR WIPER MOTOR ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT REAR WIPER MOTOR ASSEMBLY

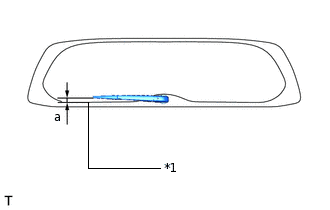

    1. E268341C01

      *1

      Ceramic Edge

      Operate the rear wiper motor assembly.

    2. Stop the rear wiper motor assembly operation.

    3. Check the automatic stop (park) position.

      Tip:

      After the rear wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.

      OK

      The rear wiper stops at the position shown in the illustration.

      Standard

      Area

      Standard Condition

      a

      15 mm (0.5906 in.)
