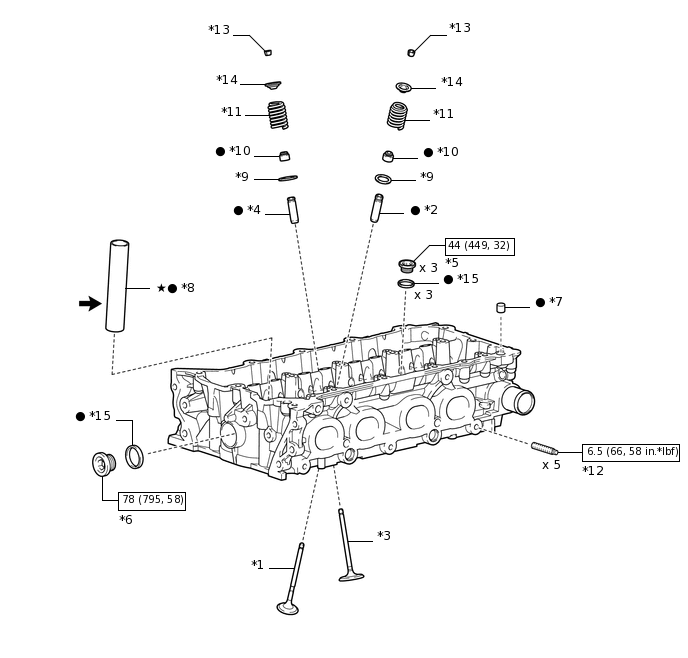

CYLINDER HEAD COMPONENTS

*1	EXHAUST VALVE	*2	EXHAUST VALVE GUIDE BUSH
*3	INTAKE VALVE	*4	INTAKE VALVE GUIDE BUSH
*5	NO. 1 STRAIGHT SCREW PLUG	*6	NO. 2 STRAIGHT SCREW PLUG
*7	RING PIN	*8	SPARK PLUG TUBE
*9	VALVE SPRING SEAT	*10	VALVE STEM OIL SEAL
*11	INNER COMPRESSION SPRING	*12	STUD BOLT
*13	VALVE SPRING RETAINER LOCK	*14	VALVE SPRING RETAINER
*15	GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	★	Precoated part

*1

EXHAUST VALVE

*2

EXHAUST VALVE GUIDE BUSH

*3

INTAKE VALVE

*4

INTAKE VALVE GUIDE BUSH

*5

NO. 1 STRAIGHT SCREW PLUG

*6

NO. 2 STRAIGHT SCREW PLUG

*7

RING PIN

*8

SPARK PLUG TUBE

*9

VALVE SPRING SEAT

*10

VALVE STEM OIL SEAL

*11

INNER COMPRESSION SPRING

*12

STUD BOLT

*13

VALVE SPRING RETAINER LOCK

*14

VALVE SPRING RETAINER

*15

GASKET

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

★

Precoated part
