BLACK OUT TAPE(for Front Door) REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

    Click here

  6. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Click here

  7. REMOVE FRONT DOOR ASSIST GRIP COVER LH

    Click here

  8. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

    Click here

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Click here

  10. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

    Click here

  11. REMOVE FRONT DOOR SERVICE HOLE COVER LH

    Click here

  12. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH

    Click here

  13. REMOVE FRONT DOOR GLASS RUN LH

    Click here

  14. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY LH

    Click here

  15. REMOVE FRONT DOOR WEATHERSTRIP LH

    Click here

  16. REMOVE DOOR WINDOW FRAME MOULDING CLIP

    Click here

  17. REMOVE FRONT DOOR WINDOW REAR FRAME MOULDING LH

    Click here

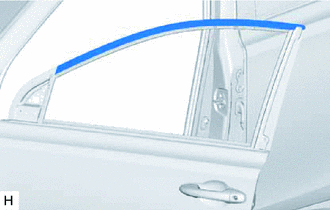

  18. REMOVE NO. 1 BLACK OUT TAPE LH

    B338468
    Tip:

    When removing the No. 1 black out tape, heat the front door panel and No. 1 black out tape using a heat light.

    Standard

    Item

    Temperature

    Front Door Panel

    40 to 60°C (104 to 140°F)

    No. 1 Black Out Tape

    20 to 30°C (68 to 86°F)
    Note:

    Do not heat the front door panel or No. 1 black out tape excessively.

    1. Pull back an edge of the No. 1 black out tape and pull it parallel to the front door panel to remove it.
