CLUTCH SYSTEM


  1. OUTLINE


    1. A dry type single plate clutch which is operated by hydraulic pressure is used.

    2. The clutch pedal is used a turnover mechanism to reduce clutch pedal effort.

    3. A clutch start system is used to ensure safety.

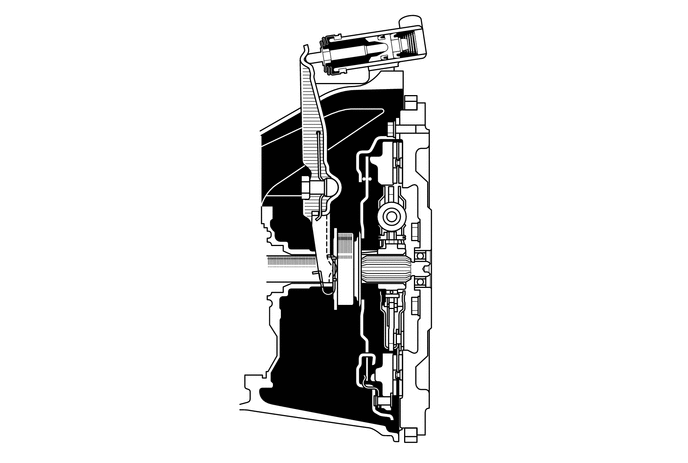

      A004GV9

  2. SPECIFICATION

    Clutch Type Dry Type Single Plate Clutch Diaphragm Spring
    Operation Hydraulic
    Clutch Cover Assembly Size mm (in.) 230 (9.06)
    Installed Load N 4650
    Clutch Disc Assembly Facing Size* mm (in.) 230 x 155 (9.06 x 6.1)
    Clutch Master Cylinder Assembly Plunger Type
    Clutch Release Cylinder Assembly Non-adjustable Type
    Clutch Pedal Turnover
    Clutch Start System Standard

    *: Outer Diameter x Inner Diameter
