FUEL INJECTOR COMPONENTS
ILLUSTRATION
*A |
for LHD |
- |
- |
*1 |
FRONT AIR SHUTTER SEAL RH |
*2 |
FRONT NO. 1 VENTILATOR SEAL |
*3 |
OUTER COWL TOP PANEL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*A |
for RHD |
- |
- |
*1 |
FRONT AIR SHUTTER SEAL RH |
*2 |
FRONT NO. 1 VENTILATOR SEAL |
*3 |
OUTER COWL TOP PANEL |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

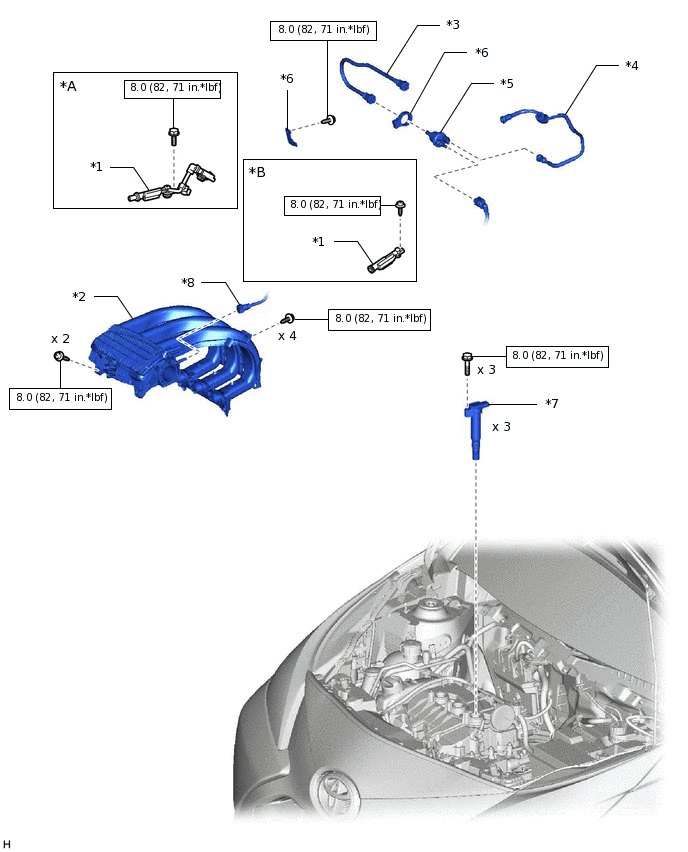

ILLUSTRATION
*A |
w/ Heater |
*B |
w/o Heater |
*1 |
VENTILATION NO. 1 CONNECTOR |
*2 |
INTAKE MANIFOLD |
*3 |
NO. 2 VACUUM PIPE |
*4 |
NO. 1 VACUUM PIPE |
*5 |
NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (PURGE VSV) |
*6 |
BRACKET |
*7 |
IGNITION COIL ASSEMBLY |
*8 |
VACUUM HOSE ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

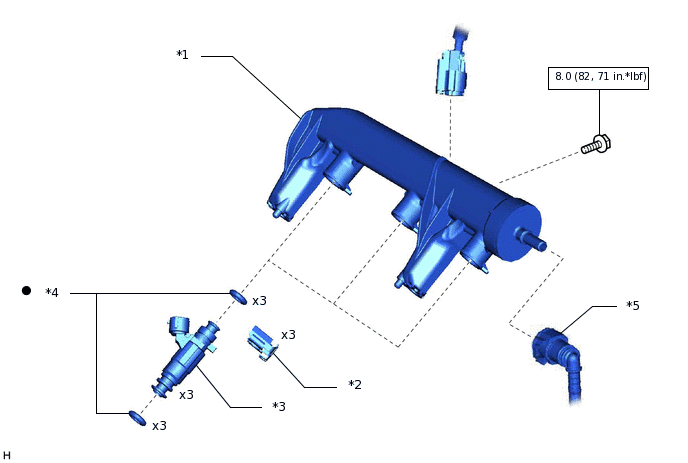

ILLUSTRATION
*1 |
FUEL DELIVERY PIPE |
*2 |
NO. 1 INJECTOR HOLDER |
*3 |
FUEL INJECTOR ASSEMBLY |
*4 |
O-RING |
*5 |
FUEL TUBE SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
