ROAD SIGN ASSIST SYSTEM PARTS LOCATION

ILLUSTRATION

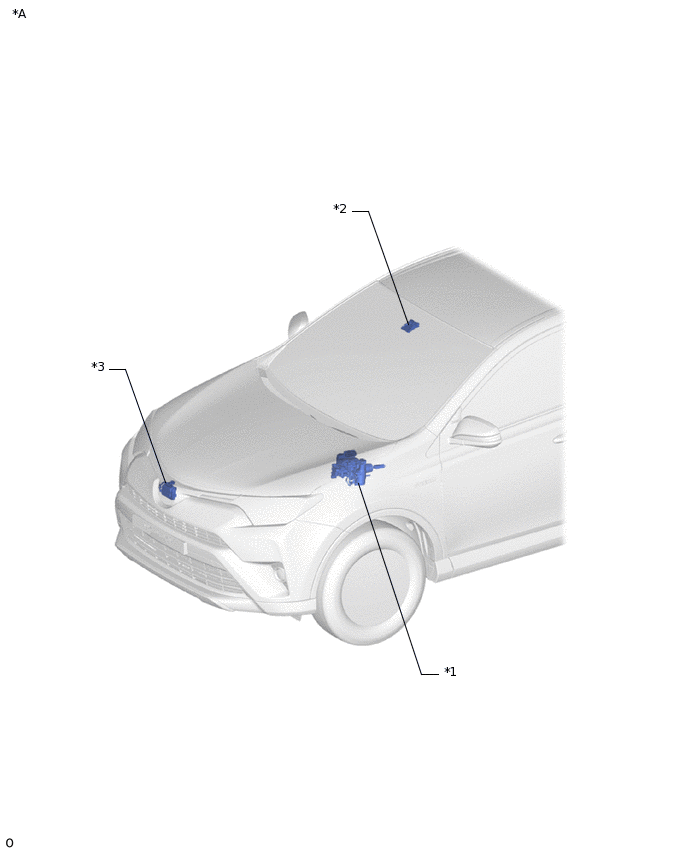

C347408C01

-

*A

for LHD

-

-

*1

SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

*2

FORWARD RECOGNITION CAMERA

*3

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

-

-

ILLUSTRATION

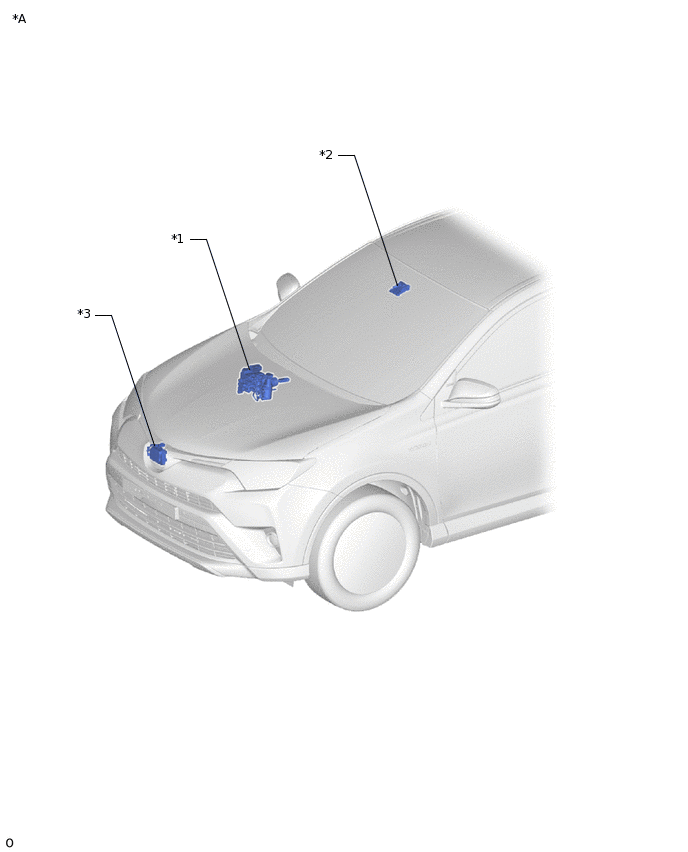

C347409C01

*A

for RHD

-

-

*1

SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

*2

FORWARD RECOGNITION CAMERA

*3

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

-

-

ILLUSTRATION

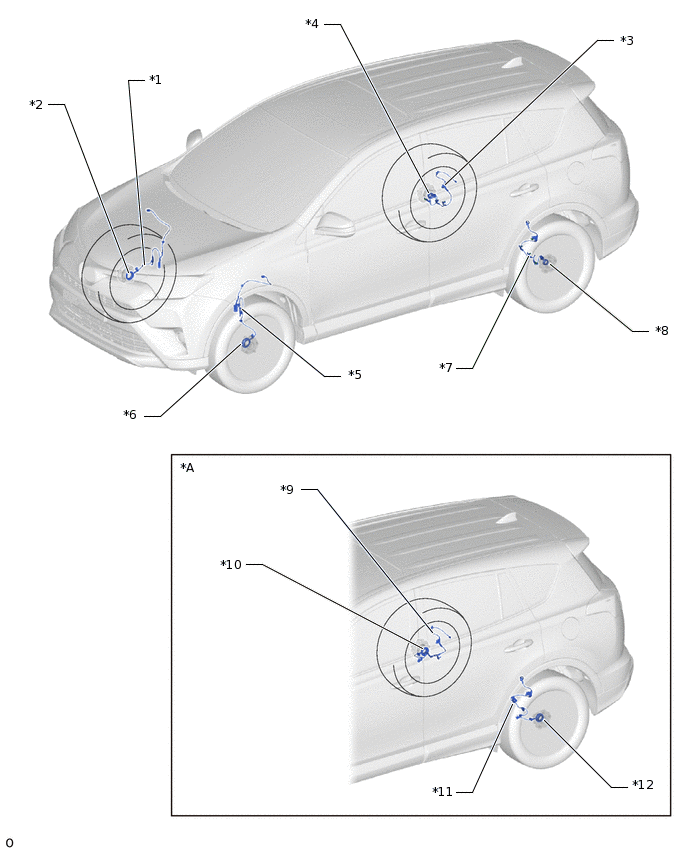

C347639C02

*A

for AWD

-

-

*1

FRONT SPEED SENSOR RH

*2

FRONT SPEED SENSOR ROTOR RH (FRONT AXLE HUB SUB-ASSEMBLY RH)

*3

SKID CONTROL SENSOR WIRE RH

*4

REAR SPEED SENSOR RH/REAR SPEED SENSOR ROTOR RH (REAR AXLE HUB AND BEARING ASSEMBLY RH)

*5

FRONT SPEED SENSOR LH

*6

FRONT SPEED SENSOR ROTOR LH (FRONT AXLE HUB SUB-ASSEMBLY LH)

*7

SKID CONTROL SENSOR WIRE LH

*8

REAR SPEED SENSOR LH/REAR SPEED SENSOR ROTOR LH (REAR AXLE HUB AND BEARING ASSEMBLY LH)

*9

REAR SPEED SENSOR RH

*10

REAR SPEED SENSOR ROTOR RH (REAR AXLE HUB AND BEARING ASSEMBLY RH)

*11

REAR SPEED SENSOR LH

*12

REAR SPEED SENSOR ROTOR LH (REAR AXLE HUB AND BEARING ASSEMBLY LH)

ILLUSTRATION

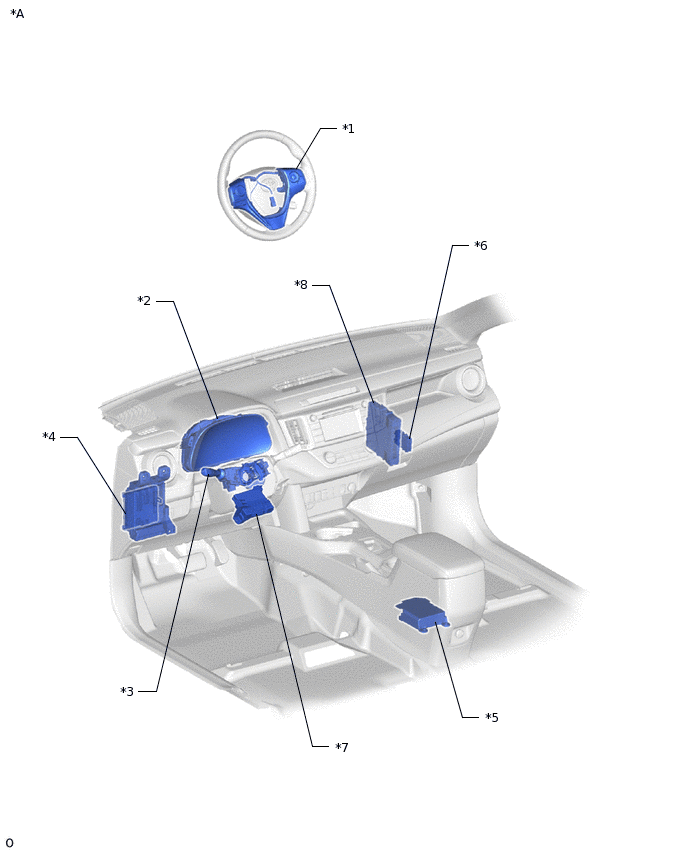

C347410C01

*A

for LHD

-

-

*1

STEERING PAD SWITCH ASSEMBLY

*2

COMBINATION METER ASSEMBLY

*3

HEADLIGHT DIMMER SWITCH ASSEMBLY

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

YAW RATE AND ACCELERATION SENSOR (AIRBAG SENSOR ASSEMBLY)

*6

NETWORK GATEWAY ECU

*7

AIR CONDITIONING AMPLIFIER ASSEMBLY

*8

HYBRID VEHICLE CONTROL ECU

ILLUSTRATION

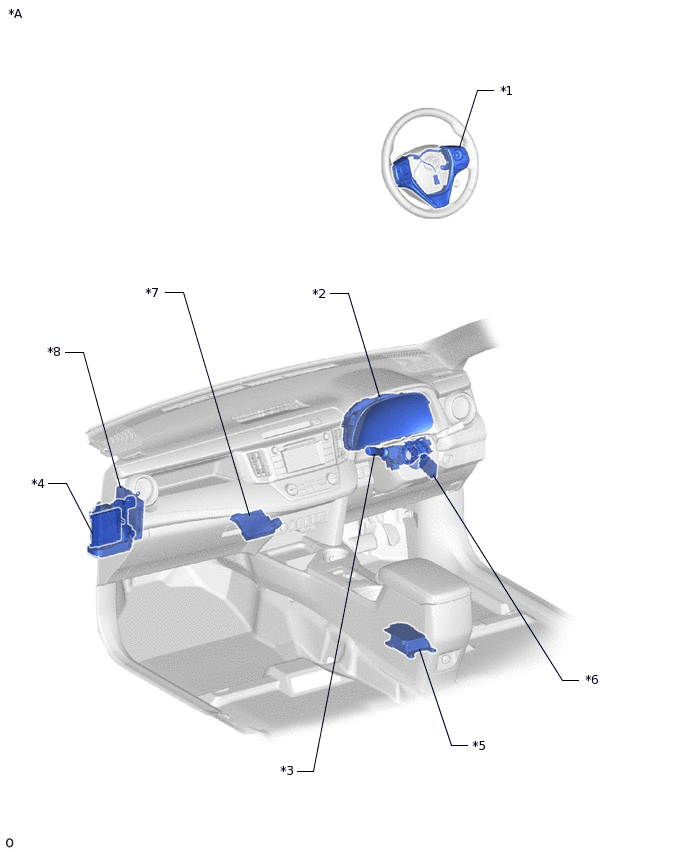

C347411C01

*A

for RHD

-

-

*1

STEERING PAD SWITCH ASSEMBLY

*2

COMBINATION METER ASSEMBLY

*3

HEADLIGHT DIMMER SWITCH ASSEMBLY

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

YAW RATE AND ACCELERATION SENSOR (AIRBAG SENSOR ASSEMBLY)

*6

NETWORK GATEWAY ECU

*7

AIR CONDITIONING AMPLIFIER ASSEMBLY

*8

HYBRID VEHICLE CONTROL ECU
