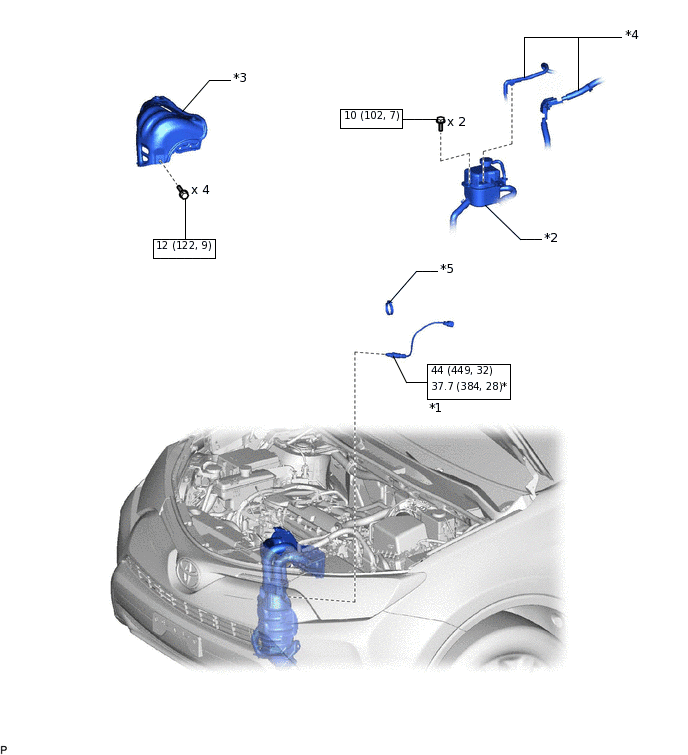

AIR FUEL RATIO SENSOR COMPONENTS

*1	AIR FUEL RATIO SENSOR	*2	INVERTER RESERVE TANK ASSEMBLY
*3	NO. 1 EXHAUST MANIFOLD HEAT INSULATOR	*4	WIRE HARNESS
*5	RADIATOR HOSE CLAMP	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with SST

*1

AIR FUEL RATIO SENSOR

*2

INVERTER RESERVE TANK ASSEMBLY

*3

NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

*4

WIRE HARNESS

*5

RADIATOR HOSE CLAMP

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST
