FRONT PASSENGER AIRBAG ASSEMBLY REMOVAL

PROCEDURE

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    1. Remove the instrument panel safety pad sub-assembly (Click here).

  2. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Click here

  3. REMOVE INSTRUMENT PANEL STAY RH

    Click here

  4. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Click here

  5. REMOVE INSTRUMENT PANEL WIRE ASSEMBLY

    1. B223153

      Disconnect the connector and remove the wire.

      Note:

      When handling the airbag connector, take care not to damage the airbag wire harness.

  6. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    1. B223154

      Remove the 2 screws.

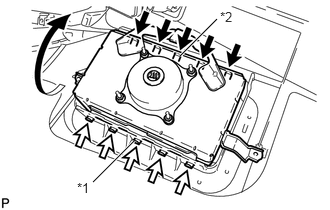

    2. B223155E02

      Detach the 5 hooks (A).

      Table 1. Text in Illustration

      *1

      Hook (A)

      *2

      Hook (B)

    3. Detach the 5 hooks (B) and remove the instrument panel passenger airbag.
