KNEE AIRBAG ASSEMBLY INSTALLATION

PROCEDURE

1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

   1.

      Connect the connector.

      Note:

      When handling the airbag connector, take care not to damage the airbag wire harness.

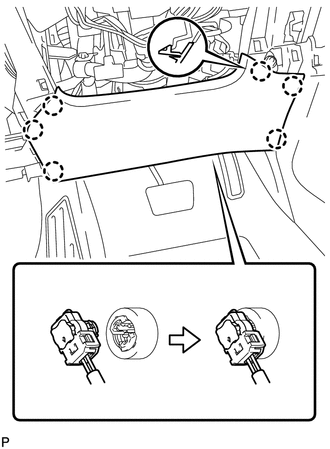

   2. Attach the 6 claws to install the instrument panel airbag.

   3. Install the 4 bolts.

      10 N*m

      102 kgf*cm

      7 ft.*lbf

2. INSTALL STEERING COLUMN COVER

   Click here

3. INSTALL NO. 1 SWITCH HOLE BASE

   Click here

4. INSTALL NO. 2 SWITCH HOLE BASE

   Click here

5. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)

   Click here

6. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (except Manual Transaxle)

   Click here

7. INSTALL SHIFTING HOLE COVER (for Manual Transaxle)

   Click here

8. INSTALL POSITION INDICATOR HOUSING ASSEMBLY (except Manual Transaxle)

   Click here

9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

   Click here

10. INSTALL STEREO OPENING COVER WITH BRACKET (w/o Audio)

    Click here

11. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Audio)

    Click here

12. INSTALL RADIO RECEIVER ASSEMBLY (w/ Audio)

    1. for Radio Receiver Type:

       Install the radio receiver assembly (Click here).

    2. for Radio and Display Type:

       Install the radio receiver assembly (Click here).

13. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here

14. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

    Click here

15. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    Click here

16. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

18. CHECK SRS WARNING LIGHT

    1. Check the SRS warning light (Click here).
