CONDENSER INSTALLATION

PROCEDURE

  1. INSTALL COOLER CONDENSER ASSEMBLY

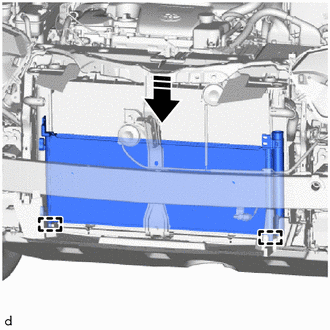

    1. E333864

      Attach the 2 guides to install the cooler condenser assembly.

      Note:

      Do not damage the cooler condenser assembly or radiator assembly when installing the cooler condenser assembly.

      Tip:

      If the cooler condenser assembly is replaced with a new one, add compressor oil to the new cooler condenser assembly.

      Capacity

      40 cc (1.35 fl.oz)

      Compressor Oil

      ND-OIL 11 or equivalent

  2. CONNECT LIQUID PIPE SUB-ASSEMBLY

    1. Remove the vinyl tape from the liquid pipe sub-assembly and the connecting part of the cooler condenser assembly.

    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the liquid pipe sub-assembly.

      Compressor Oil

      ND-OIL 11 or equivalent

    3. Install the O-ring to the liquid pipe sub-assembly.

      Note:

      Keep the O-rings and O-ring fitting surfaces free of foreign matter.

    4. Connect the liquid pipe sub-assembly to the cooler condenser assembly with the bolt.

      5.4 N*m

      55 kgf*cm

      48 in.*lbf

  3. CONNECT DISCHARGE HOSE SUB-ASSEMBLY

    1. Remove the vinyl tape from the discharge hose sub-assembly and the connecting part of the cooler condenser assembly.

    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the discharge hose sub-assembly.

      Compressor Oil

      ND-OIL 11 or equivalent

    3. Install the O-ring to the discharge hose sub-assembly.

      Note:

      Keep the O-rings and O-ring fitting surfaces free of foreign matter.

    4. Connect the discharge hose sub-assembly to the cooler condenser assembly with the bolt.

      5.4 N*m

      55 kgf*cm

      48 in.*lbf

  4. INSTALL RADIATOR ASSEMBLY (for Inverter)

    Click here

  5. INSTALL FRONT BUMPER COVER

    Click here

  6. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    1. for HFC-134a(R134a):

      Click here

    2. for HFO-1234yf(R1234yf):

      Click here

  7. WARM UP COMPRESSOR

    1. for HFC-134a(R134a):

      Click here

    2. for HFO-1234yf(R1234yf):

      Click here

  8. INSPECT FOR REFRIGERANT LEAK

    1. for HFC-134a(R134a):

      Click here

    2. for HFO-1234yf(R1234yf):

      Click here
