SEAT POSITION SENSOR REMOVAL

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. REMOVE FRONT SEAT ASSEMBLY LH

    Click here

  6. REMOVE SEAT POSITION AIRBAG SENSOR

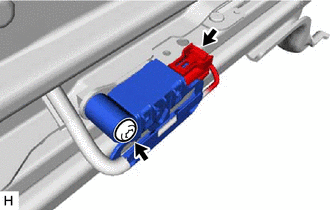

    1. B341154

      for Manual Seat:

      1. Disconnect the connector.

      2. Separate the wire harness from the seat slide position sensor protector.

      3. Using a T30 "TORX" socket wrench, remove the "TORX" screw and seat position airbag sensor with the seat slide position sensor protector.

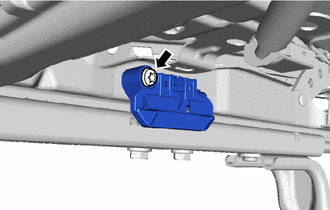

    2. B345211

      for Power Seat:

      1. Disconnect the connector.

      2. Separate the wire harness from the seat slide position sensor protector.

      3. Using a T30 "TORX" socket wrench, remove the "TORX" screw and seat position airbag sensor with the seat slide position sensor protector.

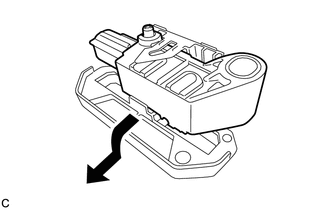

    3. B228031

      Remove the seat position airbag sensor from the seat slide position sensor protector as shown in the illustration.
