CONDENSER DISASSEMBLY

PROCEDURE

  1. REMOVE NO. 1 COOLER CONDENSER CUSHION

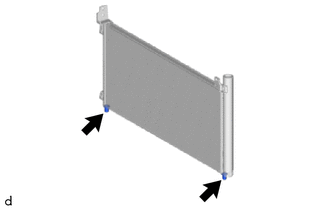

    1. B374989

      Remove the 2 No. 1 cooler condenser cushions from the cooler condenser assembly.

  2. REMOVE COOLER DRYER

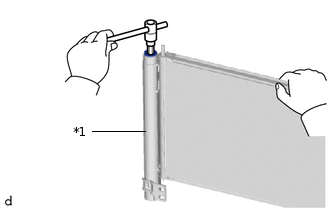

    1. B374990C01

      *1

      Modulator

      Using a 14 mm hexagon socket wrench, remove the cap from the modulator.

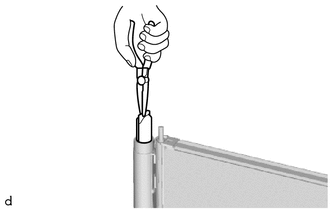

    2. B374991

      Using pliers, remove the cooler dryer from the modulator.
