VSC OFF SWITCH INSPECTION

PROCEDURE


  1. INSPECT SATELLITE SWITCH SET (VSC OFF SWITCH)


    1. B006FA1C04
      *a

      Component without harness connected

      (Satellite Switch Set (VSC OFF Switch))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      G59-2 (+) - G59-7 (E) Switch pushed Below 50 Ω
      Switch not pushed 10 kΩ or higher

      If the result is not as specified, replace the satellite switch set (VSC OFF switch).

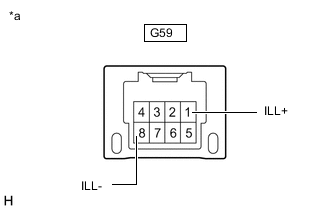

    2. B006FA1C06
      *a

      Component without harness connected

      (Satellite Switch Set (VSC OFF Switch))

      Apply battery voltage to the connector and check the illumination conditions.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → G59-1 (ILL+)

      Battery negative (-) → G59-8 (ILL-)

      		 Illuminates

      If the result is not as specified, replace the satellite switch set (VSC OFF switch).
