STOP LIGHT SWITCH INSPECTION

PROCEDURE

  1. INSPECT STOP LIGHT SWITCH ASSEMBLY

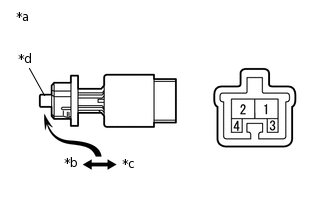

    1. E293943C01

      *a

      Component without harness connected

      (Stop Light Switch Assembly)

      *b

      Not Pushed

      *c

      Pushed

      *d

      Switch Pin

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 2

      Switch pin pushed

      10 kΩ or higher

      Switch pin not pushed

      Below 1 Ω

      3 - 4

      Switch pin pushed

      Below 200 Ω

      Switch pin not pushed

      10 kΩ or higher

      If the result is not as specified, replace the stop light switch assembly.
