MILLIMETER WAVE RADAR SENSOR REMOVAL

PROCEDURE

  1. REMOVE FRONT BUMPER COVER

    Click here

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

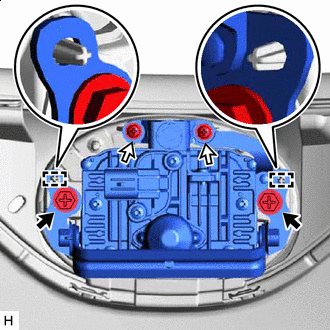

    1. B428673C01
      V100135

      Bolt
      V100136

      Screw

      Remove the 2 screws and 2 bolts.

    2. Detach the 2 guides and remove the millimeter wave radar sensor assembly.

      Note:

      Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
