WASHER MOTOR(for Front Side) REMOVAL

PROCEDURE

  1. REMOVE FRONT WHEEL RH

    Click here

  2. REMOVE FRONT FENDER LINER RH

    1. E295042C01

      *a

      Clip (A)

      *b

      Clip (B)

      Remove the 2 clips (A).

    2. Remove the 5 clips (B).

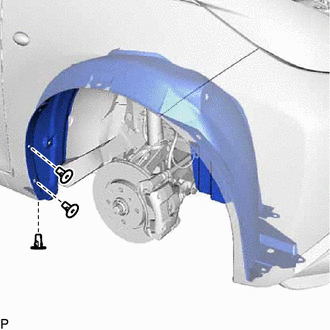

    3. E295044

      Remove the 3 grommets.

    4. E295043C01

      *a

      Bolt (A)

      *b

      Bolt (B)

      *c

      Screw

      Remove the 2 screws.

    5. Remove the bolt (A).

    6. Remove the 2 bolts (B) and front fender liner RH.

  3. DRAIN WINDSHIELD WASHER FLUID

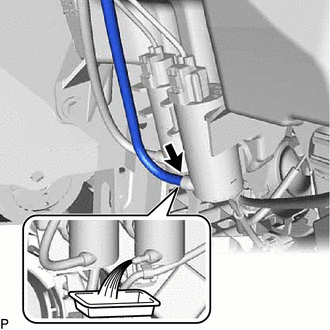

    1. E295045

      Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the windshield washer fluid.

      Tip:

      Use a container to collect the windshield washer fluid.

  4. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

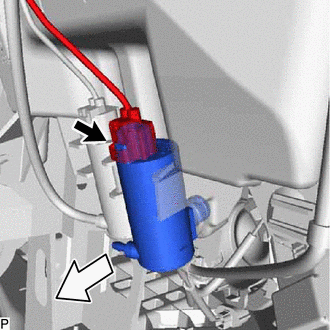

    1. E295046

      Disconnect the connector.

    2. Remove the windshield washer motor and pump assembly as shown in the illustration.

  5. REMOVE WINDSHIELD WASHER JAR BUSH

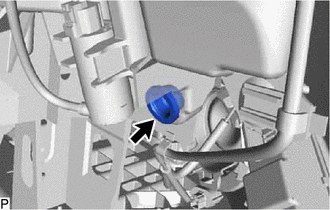

    1. E295398

      Remove the windshield washer jar bush from the washer jar.
