MANIFOLD ABSOLUTE PRESSURE SENSOR REMOVAL

PROCEDURE

  1. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR

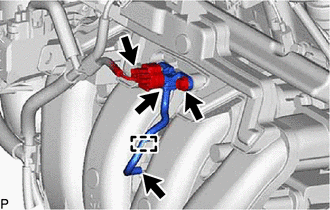

    1. A314895

      Disconnect the manifold absolute pressure sensor connector.

    2. Remove the clamp and disconnect the vacuum hose from the intake manifold.

    3. Remove the bolt and manifold absolute pressure sensor.

    4. Remove the manifold absolute pressure sensor from the vacuum hose.
